High-Quality Gabion Accessories for Secure and Durable Structures

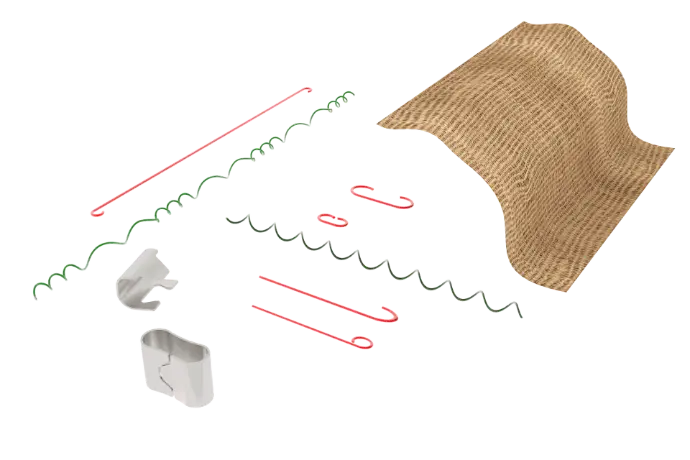

Gabion Accessories
The use of accessories helps maintain the strong and stable structure of gabion baskets, planters, and retaining walls. The accessories such as spiral coils, C pins (hog rings), J clamps, bracing ties, lacing wire, geotextile fabric, and decorative glass stones help improve the construction, support, and design of gabions. All the accessories are fitted to secure panels, avoid deformation, and increase durability.
High-strength galvanized or Zn-5%Al-coated steel wires are used to construct gabion accessories to make them resistant to corrosion and tough weather. The fabric of geotextile holds the soil of gabion planters, allowing it to drain, while the glass stones contribute beauty to the whole look of your gabion walls and landscaping. With these accessories, gabion structures are able to keep their form, effective purposes, and durability even after a long time
Technical Specifications
| Accessory | Material & Coating | Function | Standard Dimensions |
|---|---|---|---|
| Spiral Coil | Galvanized steel, Zn-5%Al-coated | Secures gabion panels together | 3.76mm dia, 20mm internal dia, 45mm pitch |
| C Pins (Hog Rings) | Galvanized steel | Fastens mesh panels quickly | 3.0mm to 3.5mm dia |
| J Clamps | As per mesh panel | Used for high-strength panel connections | Standard sizes available |
| Bracing Tie | Zinc or Zn-5%Al-coated wire | Prevents gabion bulging | 3.76mm dia wire |
| Lacing Wire | Galvanized, Zn-5%Al-coated | Connects and secures gabion panels | 2.2mm dia wire |
| Geotextile Fabric | Non-woven polyester or polypropylene | Retains soil while allowing water drainage | Varies based on project needs |
| Glass Stones | High-durability decorative glass | Enhances aesthetics in landscaping gabions | Available in multiple colors and sizes |
Essential Gabion Accessories for Every Project

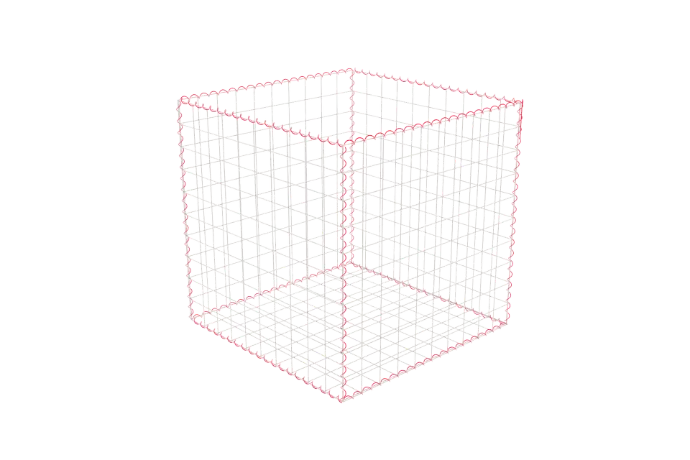

Spiral Wire
The most commonly used as well as durable connectors for welded gabion baskets exist as spiral joints. Users benefit from this design because it provides a simple setup and reduces harmful edges that protect them from accidental injury. This reliable and efficient connector establishes the base of structural integrity and easy assembly during gabion construction.
Technical Specifications
Material: Galvanized steel or Zn-5%Al (Galfan) coated wire.
Wire diameter: 3.76mm
Internal Diameter: 20mm.
Pitch (Spacing Between Loops): 25 to 45mm
Usage: Fastens gabion panels to create a strong, monolithic unit
Hog Rings / C Rings
Welded gabion baskets receive cost-efficient assembly through the use of pneumatic C ring tools which enable the application of Hog rings to act as C rings. Hog rings function properly as connectors although they fail to match the performance of spiral joints when securing edges. The method of using spiral joints delivers superior edge fastening capacity than the implementation of Hog rings.
Technical Specifications
Material: Galvanized steel
Wire Diameter: 3.0mm – 3.5mm
Usage: Quick fastening of gabion mesh panels
U Clips
Decorative gabion cages receive their connections through U clips which are manufactured as stainless steel items. The assembly process with needle-nosed pliers enables seamless and secure attachment of U clips. U clips need installation at 150 mm to 200 mm intervals for best stability alongside aesthetic finish in cages.
Technical Specifications
Material: high quality stainless steel
Width: 8.5 mm.
Length: 18.5 mm.
Height: 17.5 mm.
Strip: each strip contains 25 clips
Upgrade your Gabion projects with premium accessories

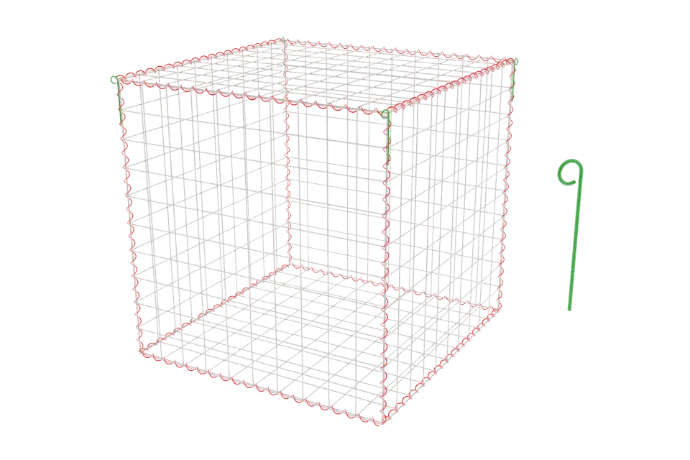

J Clamps
J Clamps are heavy-duty connectors used for high-strength panel connections, providing additional rigidity and load-bearing support in welded gabions.
Technical Specifications
Material: As per mesh sheet
Available Sizes: Extra pales bended from mesh panel
Usage: Reinforces connections between gabion panels, especially in load-bearing structures
Bracing Tie
Bracing ties are internal reinforcements used to prevent gabion walls from bulging when filled with heavy stones. They help maintain geometric shape and stability.
Technical Specifications
Material: quality steel
Wire diameter: 4.0 mm.
Length: any length is available
Anti-rust treatment: Zinc - 5% aluminum plated.
J Clamps
J Clamps are heavy-duty connectors used for high-strength panel connections, providing additional rigidity and load-bearing support in welded gabions.
Technical Specifications
Material: As per mesh sheet
Available Sizes: Extra pales bended from mesh panel
Usage: Reinforces connections between gabion panels, especially in load-bearing structures

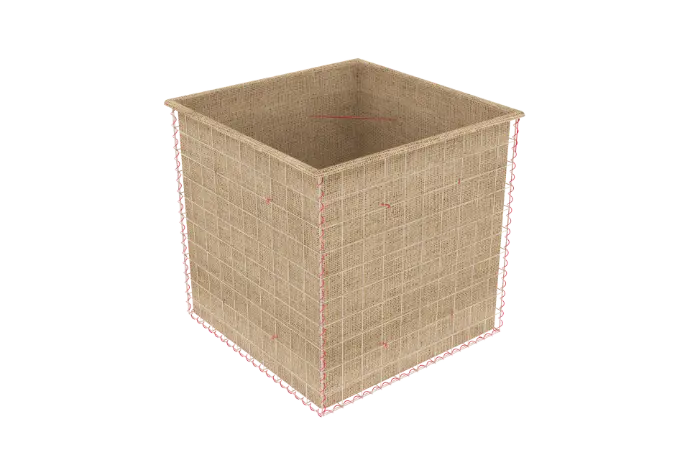

Geotextile Fabric
Geotextile fabric is a non-woven synthetic textile installed inside gabion planters or retaining structures to prevent soil loss while allowing water drainage.
Technical Specifications
Material: Non-woven polypropylene or polyester fabric
Function: Allows drainage while preventing soil loss
Length: any length is available
Usage: Lined inside gabion planters and retaining walls

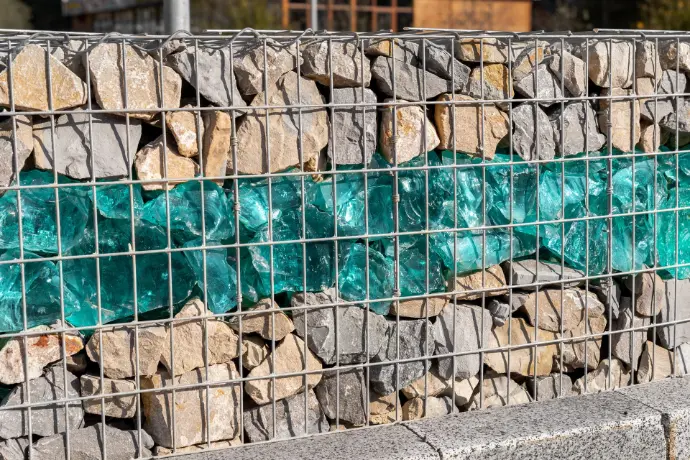

Glass Stones
Glass stones are decorative elements used inside gabion baskets, particularly in landscaping, architecture, and urban design.
Technical Specifications
Material: Tempered, high-durability glass
Available Colors: Clear, blue, green, amber, and custom shades
Usage: Enhances the aesthetic appeal of gabion walls and planters
Contact Us for Your Gabion Accessory Needs
For more information or to request a quote for our gabion accessories, please contact us. Our team is ready to assist you in selecting the perfect products for your project requirements.
