Transform Your Space with Elegant Gabion Cladding from Hitech
Gabion Cladding
The method known as gabion cladding uses wire mesh boxes stuffed with durable aggregates to create the outside walls or facades of buildings. The method offers an original look to a building and provides benefits related to sound, insulation, warmth and caring for the environment. Because it fits any decor and requires less care and upkeep, PVC can be used in both old and new renovation projects.
Benefits of Gabion Cladding?
Natural Aesthetics: Offers an original textured style that goes well with the surroundings outdoors.
Durability: Resistant to the elements, strong cladding for a home.
Sound Insulation: The warmth of the room comes from filled stone baskets that help control sound problems.
Thermal Mass: Balances the temperature inside a house by absorbing and discharging heat gradually.
Environmental Sustainability: Reduces the environmental impact by making stone and recyclable materials part of its products.
Low Maintenance: Wood cladding doesn’t require much of your time compared to other traditional cladding options.
Versatility: Perfect for use in modern or traditional architectural designs.
Cost-Effective: Life cycle costs may be less than that of traditional cladding over the years.
Gabion Cladding Specifications
With gabion cladding, baskets woven from welded wire mesh are used which allows for easy design and structure customization. Usually, the cladding measures 150 to 300 mm across and can extend up to 3 or 4 meters, controlled by the site and other factors. With cladding that measures more than the recommended height, you should use a wide base for better stability. In addition, since the mesh is welded wire, thicker wires or higher mesh sizes can be chosen, making the system strong, sturdy and resistant to bending.
| Width (mm) | Height (meters) | Wire Ø (mm) | Mesh Size (mm) |
|---|---|---|---|
| 150 | 1 meter | 4 mm | 100 × 50 |
| 200 | 2 meters | 4 mm | 100 × 50 |
| 250 | 3 meters | 4 mm | 50 × 50 |
| 250 | 3.5 meters | 5 mm | 50 × 50 |
| 300 | 4 meters | 5 mm | 50 × 50 |
Gabion Wall Cladding: Perfect for Residential and Commercial Use

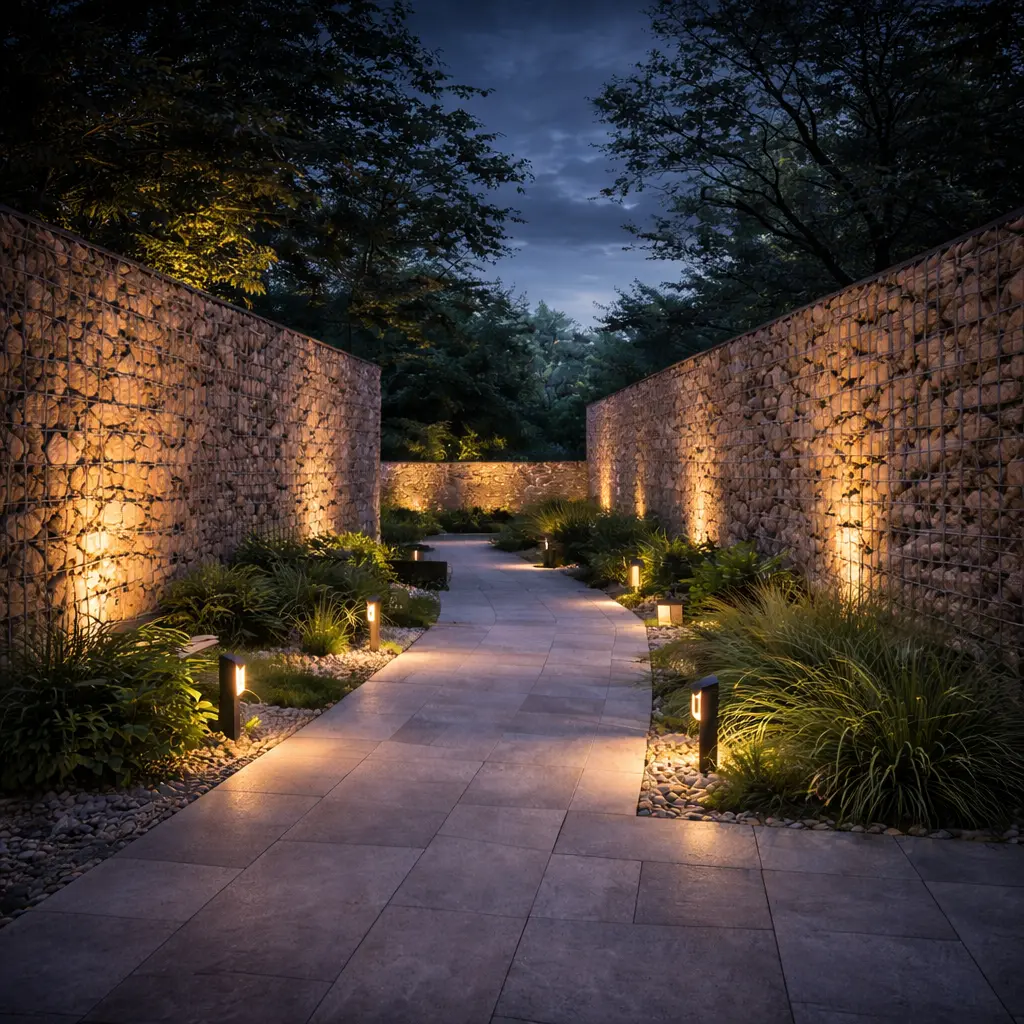

Free-Standing Gabion Cladding:
To stop the wall from bending, this design uses a main support post. The brackets are designed to hold a scheduled 40 circular pipe inside a 300x300mm hole in the ground which only extends halfway to the pipe’s height. Following placement and pouring of concrete, parts of the gabion baskets are trimmed, m Stronger wires help hold the panels into place. Optimum results are seen in gabion walls over 4 meters, making them much more secure against bending.

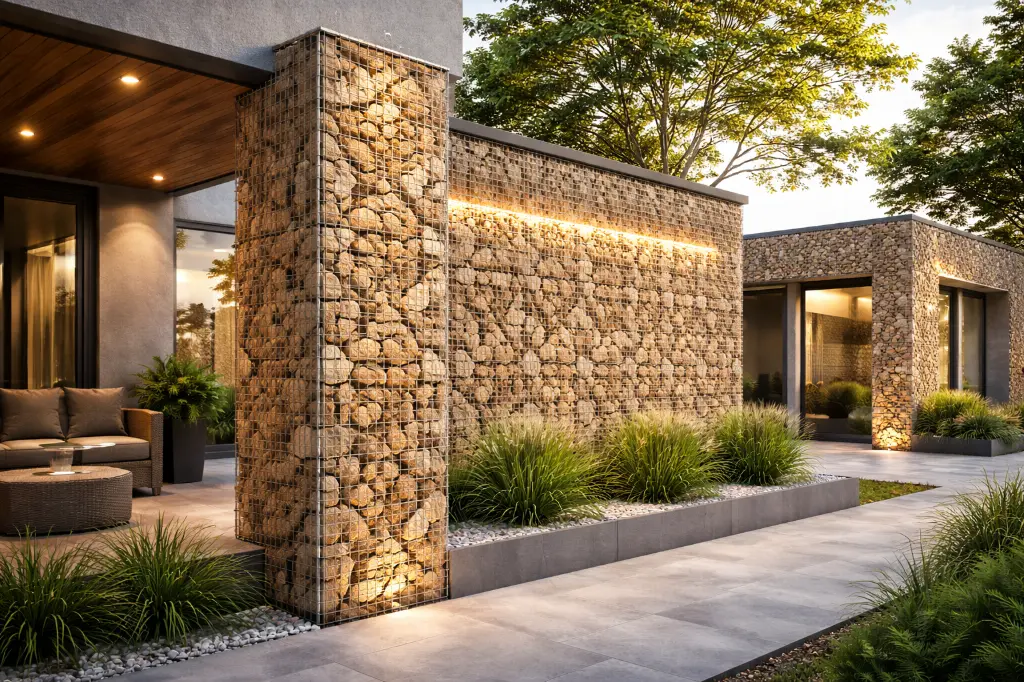

Wall-Mounted Gabion Cladding
When the needed gabion cladding area is small and vertical heights are moderate, wall-mounted gabions fit well. In this setup, the gabion meshes are fastened to the building’s framework. To make sure the gabion is secure and doesn’t bend, the back mesh is fastened to the surrounding building with anchors. Back mesh protection is increased by extending a 100 mm wide bar, with a thickness of 10 mm, along the entire gabion and placing anchor bolts at intervals of one meter. You can find this type of design works best at intermediate heights.
Material
For Gabion cladding projects, we supply strong welded wire mesh that offers excellent control of shape and protection against changing conditions. As opposed to woven mesh, welded wire mesh resists stress which ensures that your fence looks good and lasts a long time.
The wires used to make our welded wire mesh panels are low-carbon, so they provide high strength and enduring quality. Thanks to welding, every intersection holds strong and helps strengthen the entire structure. The strong shapes and positioning of the material fit perfectly in Gabion cladding, where both the position and shape of the facing are important.
Looking for a Modern Finish? Choose Gabion Cladding Solutions.
Key Benefits of Welded Wire Mesh for Gabion Cladding
More Secure Units
Due to the use of welding, woven structures maintain their form.
Corrosion Resistance
You can pick galvanized, PVC-coated or stainless steel choices to defend against environmental damage.
Eco-Friendly Choice
Support the environment with sustainable materials that minimize ecological impact.
Cost-Effective Maintenance
Save on long-term upkeep costs with a solution that requires minimal maintenance.
Applications of Gabion Retaining Walls
building facades
interior decoration wall
car park cladding
Serve in shopping mall
Exhibition hall
Explore Gabion Cladding with Hitech — Start Your Project Today!
Ready to revolutionize your architectural projects with gabion cladding? Contact HiTech Gabion for a consultation or to order your custom gabion cladding solutions. We’re excited to help you bring your vision to life with the perfect blend of beauty, durability, and innovation.
