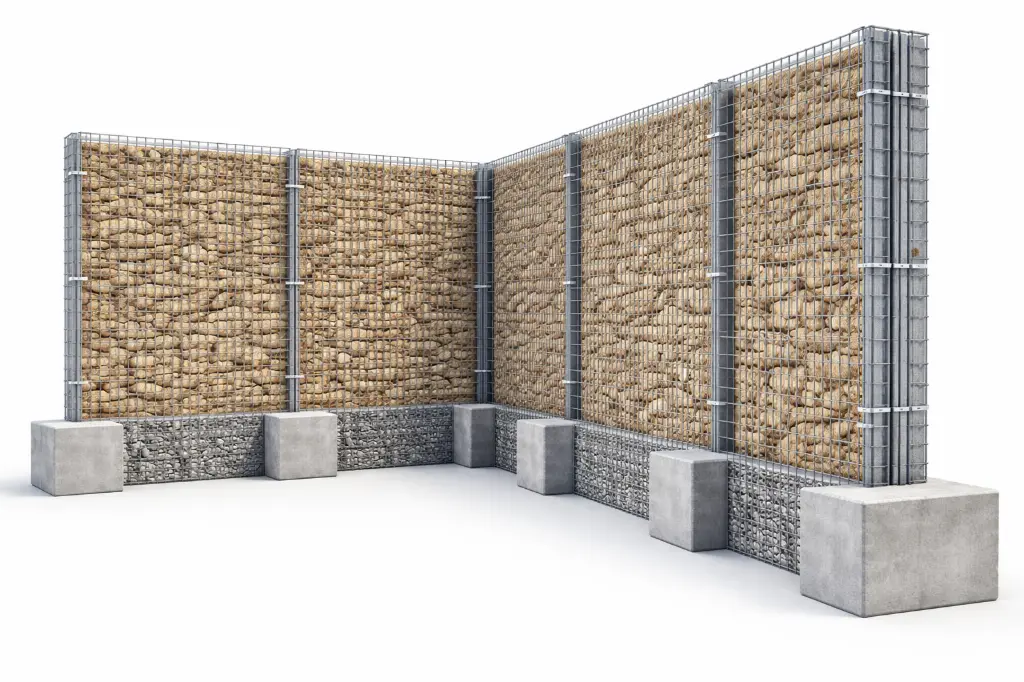

Gabion Wall

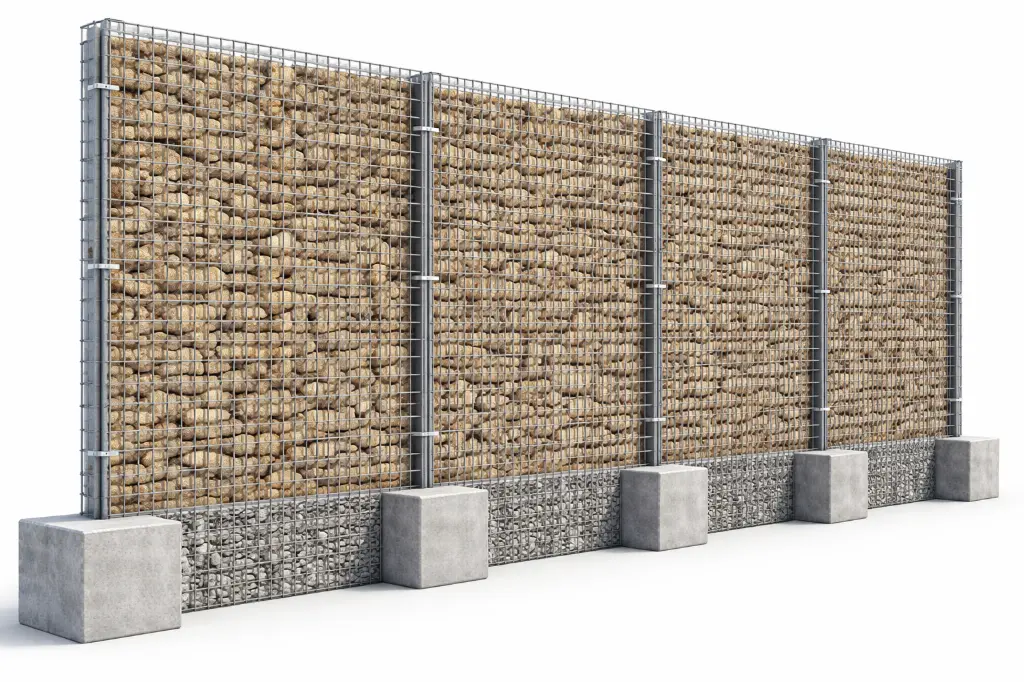

Gabion walls that are built as a free standing structure are increasingly used in contemporary commercial, residential and infrastructure developments because of their strength, longevity and attractivity. These walls are built to withstand pedestrian forces, wind, and environmental exposures and can be installed as free-standing structures, or internally strengthened with steel posts in cases where the load is likely to be higher.
Why Choose Gabion Walls?
Why Choose Gabion Walls?
They are extensively applied in security screening, definition of boundaries, noise barriers, landscape features and architectural facades. Freestanding gabion walls are a sustainable solution that provides a combination of structural performance and aesthetic excellence with the appropriate choice of stones and optional planting
Good wind and impact structural stability.
Plastic design to use in functional and decorative purposes.
Natural stone construction that is sustainable to the environment.
Minimum maintenance and service life.
Gabion Wall Technical Specifications
Technical Specifications
| Type | Specification | Description |
|---|---|---|
| Wall Type | Freestanding gabion wall | Designed to resist pedestrian impact and wind loads |
| Mesh Type | Welded wire mesh | Ensures rigidity, load resistance, and shape control |
| Wire & Mesh | 4.0 mm wire, 100 × 50 mm opening | Provides structural stability and stone retention |
| Panel Connection | 20 mm spiral coil, 45 mm pitch | Maintains continuous alignment and stiffness |
| Design A Support | Ø73 mm Schedule 40 pipe | Concrete-embedded post for walls ≥ 4 m |
| Design B Support | Square pipe + 10 mm base plate | Cost-effective system for walls up to 3 m |
| Design C Support | U-channel + anchor bolts | Fast slide-in installation for medium walls |
| Coating | ASTM A641 Class 3 | Heavy galvanizing for outdoor corrosion protection |
Key Features of Gabion Wall
High Impact Resistance
Constructed to resist pedestrian impact and provide stability in high traffic zones.
Wind Load Stability
Designed for outdoor performance with high shape control in windy conditions.
Rigid Welded Mesh
Welded wire mesh delivers rigidity, reduces bulging, and maintains clean wall geometry.
Threaded Coil Connections
Spiral coil connections lock panels securely and maintain continuous wall alignment.
Reinforced Support Options
Multiple post/channel support designs suit different wall heights and site load conditions.
Quick Installation System
Slide-in and base-plated systems enable faster installation and allow reuse where required.
Permanent Zinc Coating
Heavy galvanizing provides extensive corrosion protection in severe outdoor conditions.
Personalized Aesthetics
Flexible stone selection, finishes, and wall sizing to match project design requirements.
Build long-lasting Gabion Walls with trusted experts

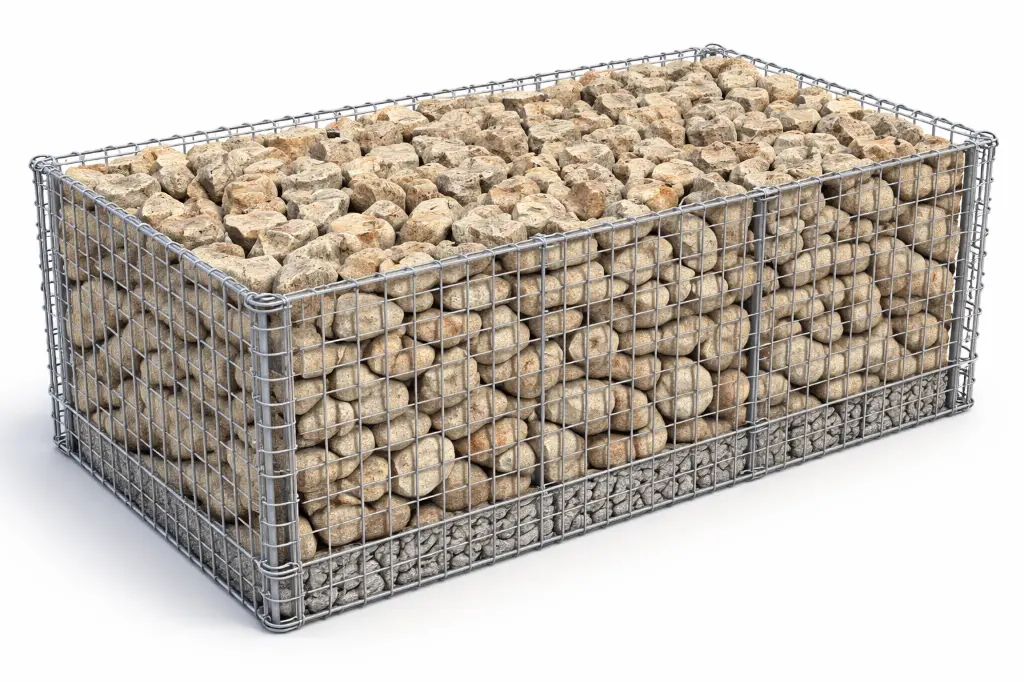

Gabion Box
Hitech knows the changing needs of the civil, architectural and infrastructure projects. We provide two types of engineered mesh: welded wire mesh and double-twisted hexagonal mesh in order to fulfill different design and performance requirements.
In the case of freestanding gabion walls, the welded wire mesh baskets are highly suggested as they are highly rigid, resistant to loads and can retain a clean and clear shape with time. The welded mesh panels are produced using 4 mm carbon steel wire and welded on all of its intersections, giving it a stable dimension and uniform distribution of load.
Reasons why welded mesh is used as freestanding walls:
Reasons why welded mesh is used as freestanding walls
Designs of panel connections differ but 20 mm spiral coils that have a 45 mm pitch are usually employed to hold the panels safely and ensure the integrity of the structure at all heights of the wall.
Has straight lines and sharp edges.
Increased deformation resistance and bulging.
Perfect in architectural and exposed designs.
Favors constant stone setting and finish.
Gabion Basket Technical Specifications
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Mesh Type | Welded Wire Mesh | Provides high rigidity and shape stability |
| Wire Diameter | 4.0 mm Carbon Steel | Ensures strength and durability |
| Mesh Opening | 100 × 50 mm | Optimized for stone retention and aesthetics |
| Panel Connection | Spiral Coil | Secure and flexible panel fastening |
| Spiral Diameter | 20 mm | High-strength mechanical connection |
| Spiral Pitch | 45 mm | Ensures tight and uniform panel locking |
| Application | Freestanding Walls | Suitable for standalone and reinforced systems |
Design Options

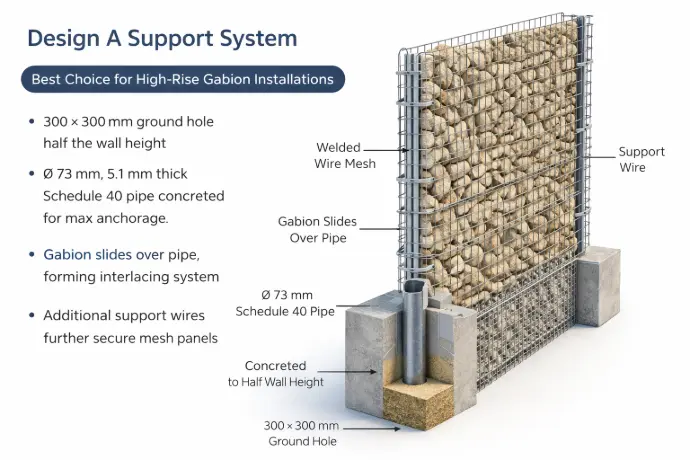

Design A
In the case of Commercial Projects (High Height and Large Width)
Design A is the best choice when a large scale or high rise gabion installation is desired and requires superior resistance to bending and stability.
A 300 x 300 mm ground hole is drilled to half the height of the wall to which a Schedule 40 circular pipe ( 0 73 mm, 5.1 mm thick) is fitted. The pipe is concreted to ensure maximum anchorage. Gabion sizes are carefully cut so that they slide over the pipe forming an interlacing system. Other support wires are used to further hold the mesh panels.
Design B
In case of Residential Projects (Low Height and Slim Width).
Design B is more affordable and a more attractive design that will be used in residential use and medium height walls.
A square-shaped pipe of custom size is welded to a base plate of durable 10 mm that is attached to the concrete foundation. The post length is covered with a 50 x 50 mm flat metal clip that is used to secure the front and rear welded mesh panels in place. The side panels of the basket are eliminated and this makes the material less expensive with no performance loss.
Design C
Multi-purpose Channel-Supported System.
This design involves U-shaped steel channels that are welded on a 10 mm bottom plate and fixed by means of bolts. The gabion box just fits into the channels and this makes it easy and efficient to install.
professionals complete the installation.
Best suited for:
Walls to 3 meters in height and 300 mm in width
Pathways, building perimeters and cladding use.
Projects that need to be installed quickly and easily.
Finishing Touches & Inspection
Contact Us
Ready to upgrade your project with welded gabion walls?
Contact us now for design support, technical specifications, and a fast quotation.
Reasons to Choose Gabion Walls
Gabion walls provide a durable, sustainable, and visually striking solution for boundaries, screening, and architectural features. Hitech Gabion, a trusted industry leader, delivers engineered systems designed for long-term performance in demanding environments.
High structural stability and impact resistance
Excellent drainage and corrosion protection.
Flexible design with natural aesthetics
Low maintenance and long service life
Expert engineering and customization support
Applications of Gabion Walls
Residential Retaining Walls
Commercial Landscaping
Infrastructure Projects
Frequently Asked Questions About Gabion Walls
Gabion boxes are typically made from galvanized or PVC-coated wire mesh, which provides durability and resistance to corrosion.
Yes, gabion boxes can be customized to meet your project requirements, including size, shape, and even the type of fill material used.
With proper installation and maintenance, gabion boxes can last for decades, even in harsh environments.
Yes, gabion boxes are eco-friendly as they are made from natural materials and allow for the growth of vegetation, which supports local ecosystems.
Gabion boxes are versatile and can be used in a variety of applications, including retaining walls, erosion control, landscaping, and decorative features.
Yes, gabion walls can be adapted to work effectively with various soil types, offering flexible solutions for diverse geographical locations.
Gabion walls typically require a stable, level base but do not usually need extensive foundations unless specified by a structural engineer.
Absolutely! We offer customization options for fill materials to match your design preferences and project requirements.
Gabion walls are often more cost-effective than traditional retaining walls due to the use of locally sourced fill materials and relatively simple construction techniques.
