Durable High-Quality Gabion Boxes
Gabion Boxes
Gabion Boxes are wire mesh boxes to contain stones, rocks, or concrete inside. Its applicability is in civil engineering, landscape design and construction for such applications as slope stabilization, retaining walls, controlling erosion and improving the aesthetics of outdoor spaces. Woven or welded, the basic purpose of a Gabion box is to support structure and enhance stability while blending with the natural environment through the drainage created and the colonization of vegetation that occurs over time.
Explore a Wide Range of Gabion Box Sizes and Options
Our company provides several gabion box dimensions and options because we understand every project needs individual solutions. Our extensive gabion box dimensions enable customers to select perfect solutions matching their project requirements. You can easily install our gabion boxes because they work well with various site conditions to deliver functional structures with pleasing aesthetics.
Double twisted gabion box
Welded mesh gabion box
Woven Gabion box
ASTM 641 class 3 wire
ASTM A974, ASTM A975, ASTM A-641, ASTM A-90, ASTM A-185
ISO Certified
Types of Gabion Boxes

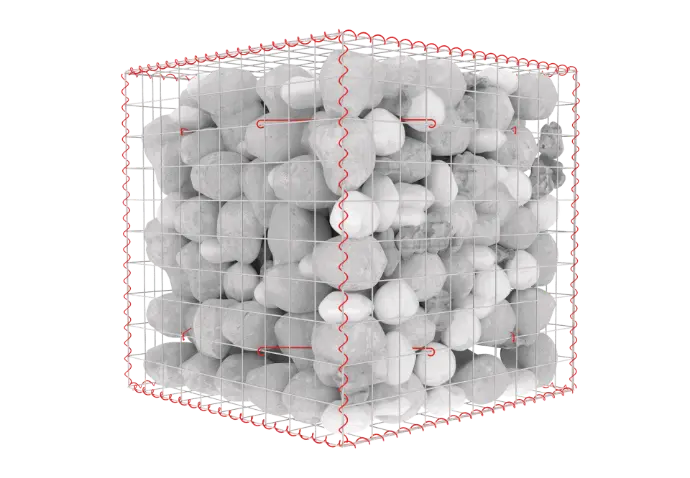

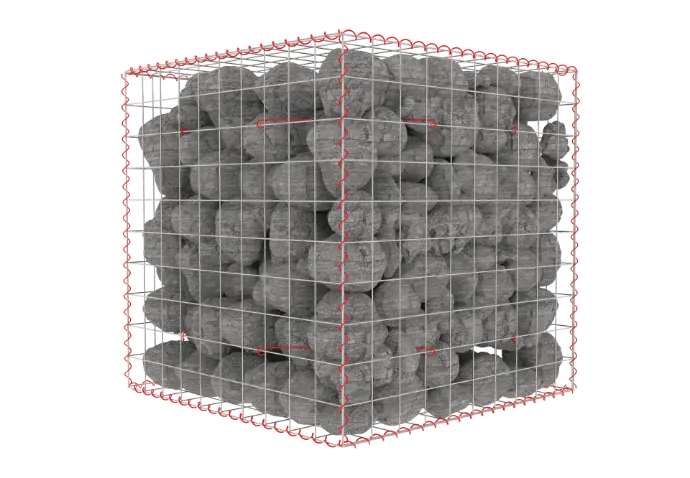

Welded Mesh
When such wires are welded into a rectangular structure, a uniform mesh pattern is achieved. Fabrication and construction of Gabion boxes utilizing welded mesh follow two major standards:
ASTM A974
This standard focuses on three processes: specifying coating requirements and parameters for Gabions with particular emphasis on types of coating to be used and a process of applying them.
BS EN 10223-8:2013
Clients receive more flexibility when designing gabions by this standard. It establishes the minimum viable wire diameter for each Gabion construction and provides the right coating standards suitable in the prevailing environment.
Welded Mesh Specifications
| Material | Carbon Steel Wire |
| Coating | Galvanized / PVC Coating |
| Wire Diameter | 3.05 / 2.7mm / 4mm / 5mm |
| Mesh Size | 75 x 75 mm / 100 x 50 mm |
| Lacing | Spiral Coil |
| Spiral | 3.76 mm |
| Spiral Internal Diameter | 20 mm |
| Spiral Pitch | 45 mm |
| Fasteners | 4 mm |
| Stiffeners | 3.76 mm |

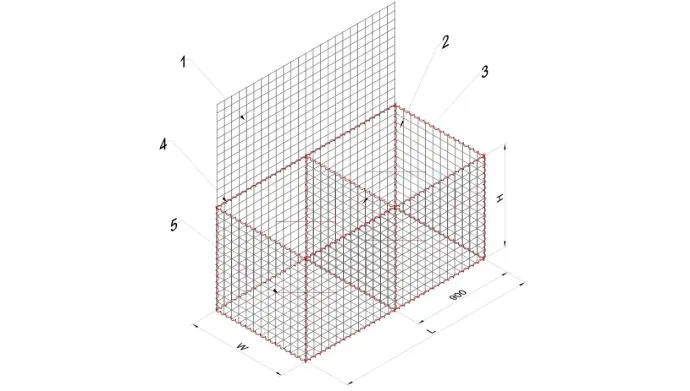

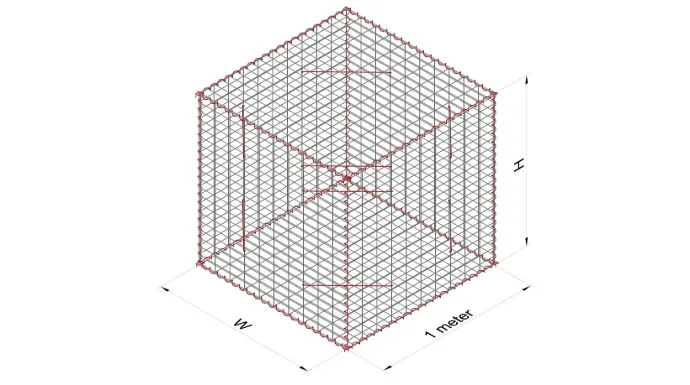

Gabion Welded Mesh Box Sizes
- There are a wide range of Gabion Welded Mesh Box sizes to be selected from, depending on your need. Make sure that box dimensions can vary according to the chosen mesh opening size.
- For panels having 100 x 50 mm mesh, the overall size will give figures divisible by 100 or 50. For example a 1000 x 1000 x 1000 mm box is available and all used dimensions allow ±20 mm to admit the spirals’ adjustments.
- Provided that the mesh has 75 x 75 mm, the boxes’ dimensions will be divisible by 75. For instance, a 900 x 900 x 900 mm box may accept +/-20mm adjustment from spiral construction.
| Length (m) | Width (m) | Height (m) | Number of Cells |
|---|---|---|---|
| 1 | 0.5 / 1 / 1.5 | 0.5 / 0.7 / 1 | 1 |
| 1.5 | 0.5 / 1 / 1.5 | 0.5 / 0.7 / 1 | 1 |
| 2 | 0.5 / 1 / 1.5 | 0.5 / 0.7 / 1 | 2 |
| 3 | 0.5 / 1 / 1.5 | 0.5 / 0.7 / 1 | 3 |
| 4 | 0.5 / 1 / 1.5 | 0.5 / 0.7 / 1 | 4 |
| 5 | 0.5 / 1 / 1.5 | 0.5 / 0.7 / 1 | 5 |
Not sure which Gabion Box fits your project?

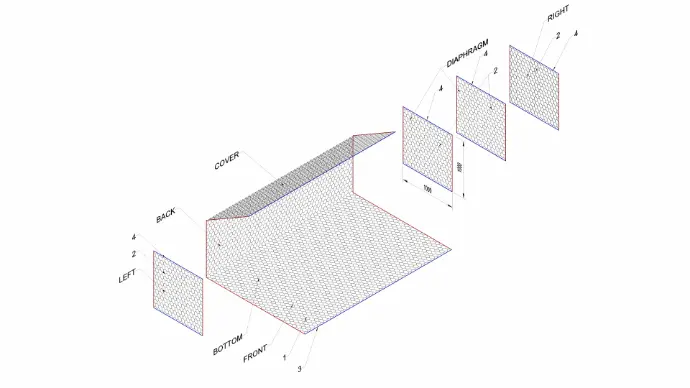

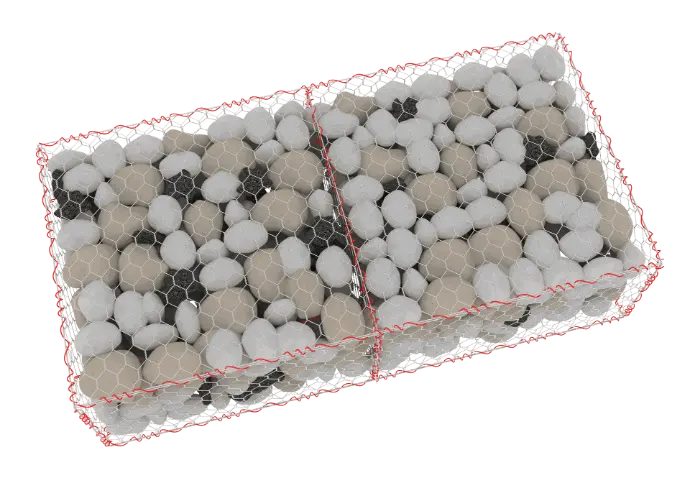

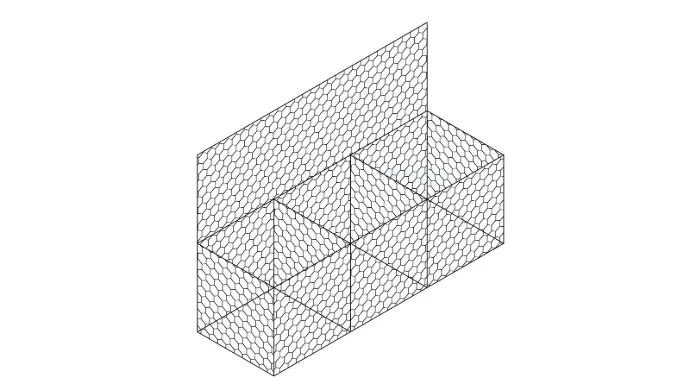

Double Twisted
The assembly of the double-twisted hexagonal mesh gabion boxes is through the looping of the steel wires together in hexagonal layout. Through the double-twist process, these containers are flexible and structurally stable and would therefore survive if individual wires fail, rendering them suitable for use in erosion prevention and retaining structure projects.
Standards and Specifications
The manufacture of such gabion boxes is governed by two important standards: ASTM 975 and BS EN 10223-3:2013. Even though ensuring solid performance in both cases, the standards lay emphasis on separate elements:
ASTM 975
- Targets particular application requirements and requires due coating requirements.
- Provides the exact information about the size of wires and the dimension of selvedge wires that are critical for upholding the effective protection of the product.
BS EN 10223-3:2013
| Parameters | ASTM Standards | British Standard | Coating |
|---|---|---|---|
| Coating | Metallic | PVC | Metallic / PVC |
| Wire Diameter | 3.05 | 2.7 | 2.7mm / 2.7 / 3.0 / 3.4 / 3.9 |
| Mesh Size | 80 x 100 | 80 x 100 | 60 x 80 / 80 x 100 |
| Selvedge Wire | 3.8 | 3.4 | 3.4 / 3.9 / 4.4 / 4.9 |
| Lacing | 2.2 | 2.2 | 2.2 |
| Fasteners | 3 mm | 3 mm | 3 mm |
| Stiffeners | 2.2 / 3.8 | 2.2 / 3.4 | 2.2 |

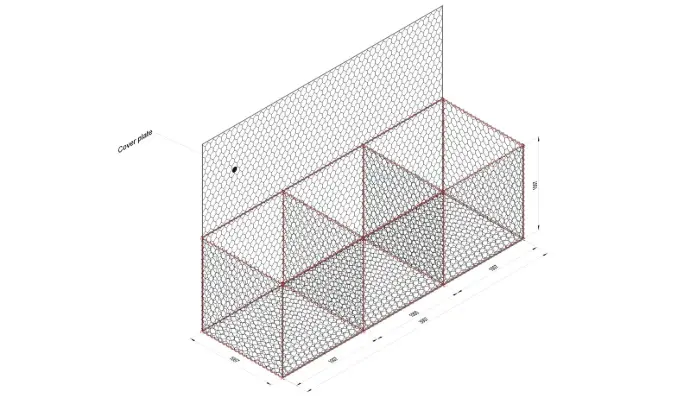

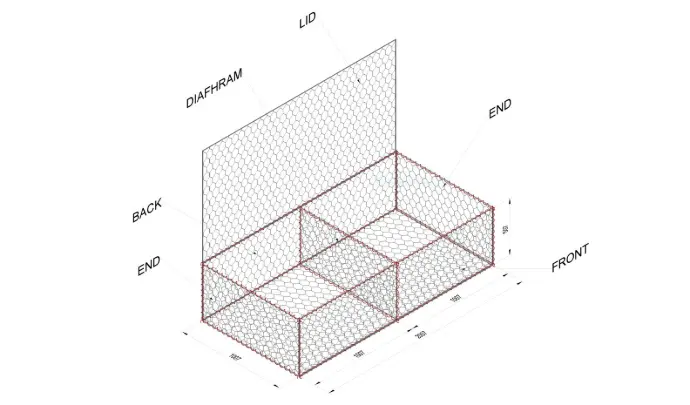

Double Twisted Sizes
- The double-twisted gabion box has various dimensions that are conducive in designing applications.
- Below is a tabulated explanation of some standard sizes given in meters of lengths, widths and heights, as well as the total number of cells each model comes with
| Length (m) | Width (m) | Height (m) | Number of Cells |
|---|---|---|---|
| 1 | 1 | 1 | 1 |
| 2 | 1 | 1 | 2 |
| 3 | 1 | 1 | 3 |
| 4 | 1 | 1 | 4 |
| 2 | 1 | 0.5 | 2 |
| 3 | 1 | 0.5 | 3 |
| 4 | 1 | 0.5 | 4 |
| 2 | 1 | 0.3 | 2 |
| 3 | 1 | 0.3 | 3 |
| 4 | 1 | 0.3 | 4 |
Coating with life span
Site Environment Level As Per British Standard
| Site Environment Level (EN ISO 9223:2012) |
Plastic Coating | Coating | EN 10244-2 Class | Expected Product Life |
|---|---|---|---|---|
| • Low Aggressive (C2) • Dry conditions • 100 meter above sea level • Low pollution |
NO | Galvanized | A | 25 |
| NO | Zn 95% AL 5% Alloy | A | >50 | |
| NO | Zn 90% AL 10% Alloy | A | >120 | |
| • Medium Aggressive (C3) • Dry condition • Medium Pollution • Low Effects of chlorides • Coastal area with low deposition of chlorides (Tropical zones) |
NO | Galvanized | A | 10 |
| NO | Zn 95% AL 5% Alloy | A | 25 | |
| NO | Zn 90% AL 10% Alloy | A | 50 | |
| PVC | Zn 95% AL 5% Alloy | A | >120 | |
| PA6 | Zn 95% AL 5% Alloy | E | >120 | |
| PVC | Zn 95% AL 10% Alloy | A | >120 | |
| • High Aggressive (C4) • Wet conditions • High Pollution • Medium Effects of chlorides • Strong effects of de-icing salts • Polluted urban area, Industrial area, coastal area |
NO | Zn 95% AL 5% Alloy | A | 10 |
| NO | Zn 90% AL 10% Alloy | A | 25 | |
| PVC | Zn 95% AL 5% Alloy | A | 120 | |
| PA6 | Zn 95% AL 5% Alloy | E | 120 | |
| PVC | Zn 95% AL 10% Alloy | A | >120 | |
| PA6 | Zn 95% AL 10% Alloy | E | >120 | |
| • Very High Aggressive (C5) • Very high pollution • Important effect of chlorides • High time of wetness • Occasional contact with salt spray • Extreme industrial areas, coastal area, offshore area |
PVC | Zn 95% AL 5% Alloy | A | 120 |
| PA6 | Zn 95% AL 5% Alloy | E | 120 | |
| PVC | Zn 95% AL 10% Alloy | A | >120 | |
| PA6 | Zn 95% AL 10% Alloy | E | >120 | |
| • Extreme Aggressive (CX) • Extreme pollution • Strong effect of chlorides • Very high time of wetness • Occasional contact with salt spray • Extreme industrial areas, coastal area, offshore area |
PVC | Zn 95% AL 10% Alloy | A | >120 |
| PA6 | Zn 95% AL 10% Alloy | E | >120 |
Choose Gabion Boxes Standards
Gabion Retaining Wall
Gabion retaining walls combine functionality for structure support along with attractive looks which makes them suitable for garden and outdoor applications
River Bank Protection
Gabion boxes serve as an efficient device for stabilisation of the rivers’ banks and the prevention of soil erosion. The holes in their design allows water to pass through
Channel Lining
Gabion boxes fulfill a practical purpose when used for channel water management and erosion control. They help stabilize the channel.
Noise Barriers
Gabion walls work as effective noise barriers because they absorb sound waves to reduce noise pollution inside residential and commercial zones.
Garden Gabions
Use gabion boxes to create unique garden features, such as raised beds, borders, or decorative walls that blend with the natural environment.
Gabion Planters
Gabion planters add a rustic charm to any garden or outdoor space. They can be filled with soil and plants, providing a sturdy and attractive planter.
Gabion Cladding
Gabion cladding offers a unique way to add texture and interest to exterior walls, combining functionality with aesthetic appeal.
Interior Designs
Incorporate gabion boxes into interior designs for a modern, industrial look. They can be used as partitions, accent walls, or even furniture bases.
Gabion Landscaping
Gabion boxes are perfect for landscaping projects, providing both functional and decorative elements that enhance the overall design. .
FAQs About Gabion Boxes
Gabion boxes are typically made from galvanized or PVC-coated wire mesh, which provides durability and resistance to corrosion.
Yes, we offer a range of standard sizes as well as custom options to fit your specific project needs.
With proper installation and maintenance, gabion boxes can last for decades, even in harsh environments.
Yes, gabion boxes are eco-friendly as they are made from natural materials and allow for the growth of vegetation, which supports local ecosystems.
Gabion boxes are versatile and can be used in a variety of applications, including retaining walls, erosion control, landscaping, and decorative features.
