Gabion Mattresses
Gabion mattresses, or Reno mattresses, are flexible wire mesh units that use stones filled and are used for erosion control, slope stabilization, and channel linings. They are provided in forms made of double-twisted hexagonal mesh (woven), as well as those made of welded wire mesh. Welded mesh is characterized by a strong rigidity and flatness, compared with flexibility, and ground-adjustability, of double-twisted mesh. Both are also corrosion resistant and promote the growth of vegetation making them suitable for long term erosion protection. Hitech Gabion is your trusted partner for high-performance gabion mattresses engineered for erosion control and slope stabilization
Parts of Gabion Mattresses
Parts of Gabion Mattresses

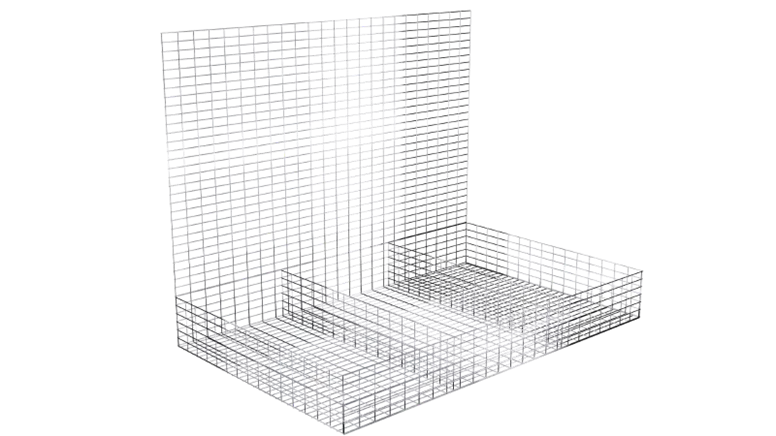

Base Panel: Provides stability at its center by distributing the weight of the stone and supporting overall stability.
Side & End Panels: Provide walls for balance of the stone fill and prevent horizontal displacement.

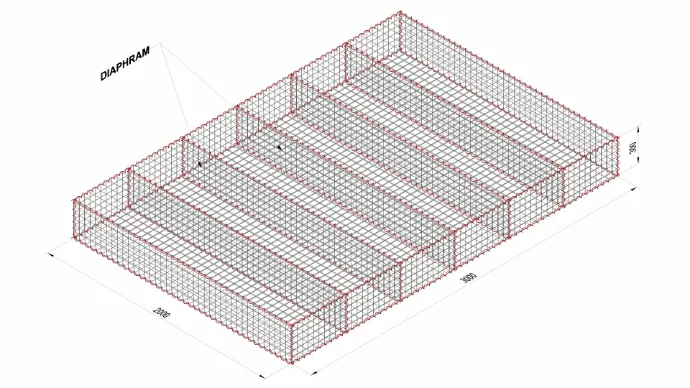

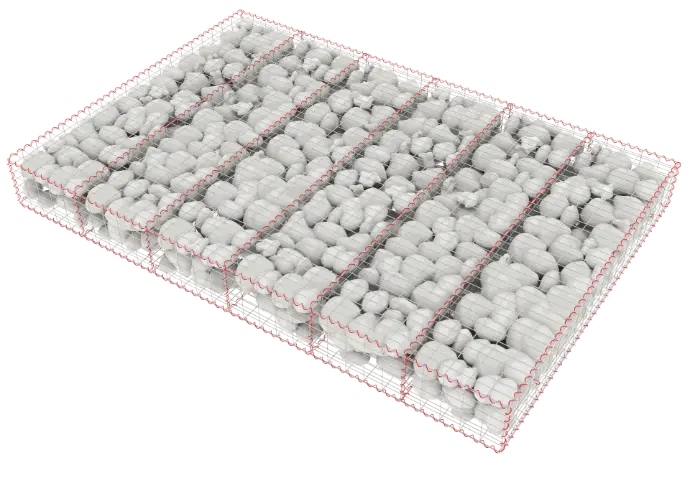

Diaphragms: Rocks stabilizing internal braces extremely important for stability and preventing rocks from moving

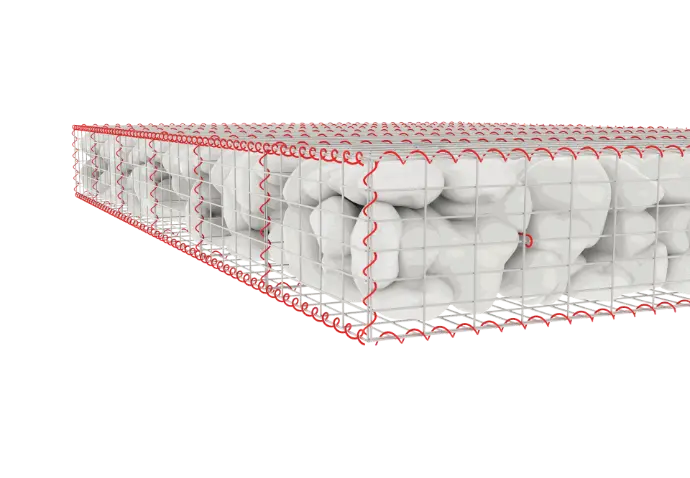

Selvedge Wire: A reinforced outer edge wire, not only stabilises, but also prevents material from unwinding.
Lacing Wire / Fasteners: Join panels closely together for a good stable structure.

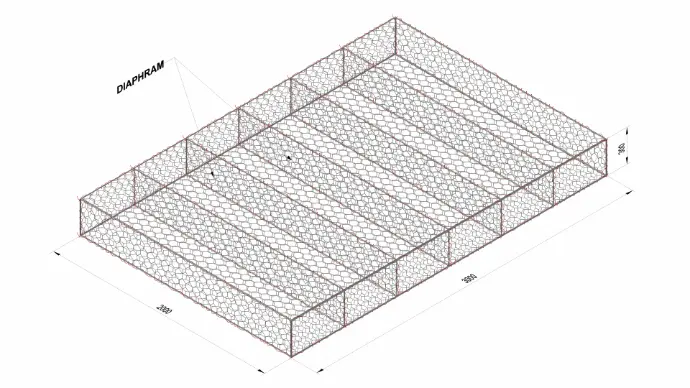

Nomenclature

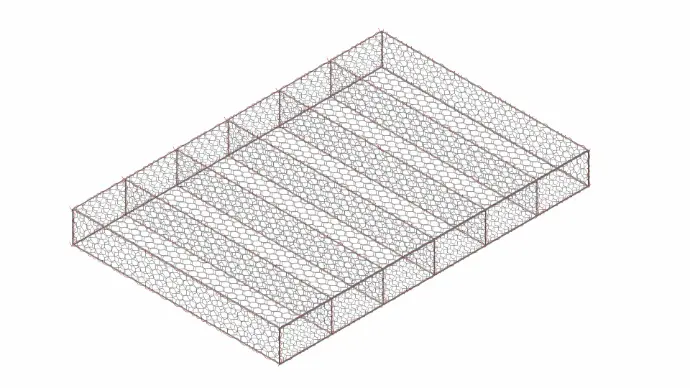

Double-Twisted Mesh Sizes: Popular sizes include 6×8 (approx. 64×83 mm) and 8×10 (approx. 83×114 mm) that are widely used for the purpose of erosion control efforts.

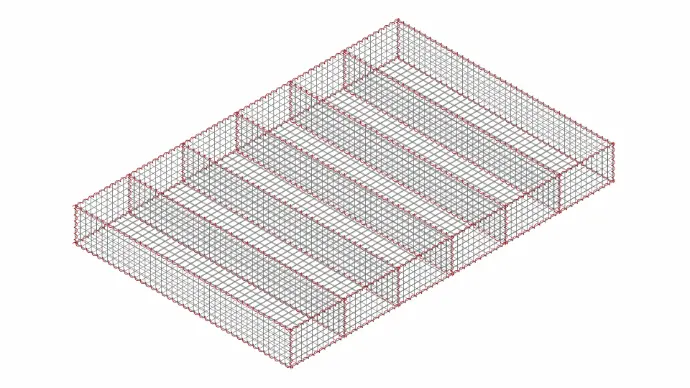

Welded Mesh Sizes: In three available sizes 50mm by 50mm, 75mm by 75mm and 100mm by 50mm, these sizes improve on structural stability.
Standard Dimensions: The dimensions are in standardized form Length × Width × Height, that is, 4m × 2m × 0.23m, and this simplifies construction.
Protect riverbanks and slopes with reliable Gabion Mattresses
Specifications of Gabion Mattresses
ASTM A975 (Double-Twisted Mesh Mattresses)
This specification describes the specifications for double-twisted hexagonal wire mesh applied in gabion mattresses. It offers wire gauge, mesh specifications, and coating options to facilitate long term integrity of structure. The design should retain its flexibility because it comes under different environmental factors such as soil pressure and water movement.
| Mesh Size | Wire Ø (mm) | Selvedge Wire Ø (mm) | Lacing Wire Ø (mm) | Coating Options |
|---|---|---|---|---|
| 6×8 mm | 2.2 (galv/PVC) | 2.7 (galv/PVC) | 2.2 | Galv, Zn-5%Al, PVC |
| 8×10 mm | 2.7 (galv/PVC) | 3.4 (galv/PVC) | 2.2 | Galv, Zn-5%Al, PVC |
ASTM A974 (Welded Mesh Mattresses)
As stipulated by ASTM A974, structural stability and uniform size are ensured in welded mesh gabions. A more focused attention is given to weld shear performance and the use of corrosion-resistant finishes for long term performance. This standard is commonly applied for the soil shaping materials, namely, the gabions generation, in critical conditions, because of its strong focus on rigidity and deformation control.
| Mesh Size | Wire Ø (mm) | Weld Shear Strength | Coating Options |
|---|---|---|---|
| 76 x 76 | 3.05 (galv/PVC) | ≥70% of tensile strength | Galv, Zn-5%Al, PVC |
| 38 x 76 | 2.2 (galv/PVC) | ≥70% of tensile strength | Galv, Zn-5%Al, PVC |
BS EN 10223-3 (Double-Twisted Mattresses)
This European standard gives requirements for the double-twisted wire mesh gabions used in civil engineering works. It establishes that the strength of mesh wires, selvedge wires and coatings aligns with the durability standards. By imposing structural integrity criteria, the standard enables the stability of gabions in erosion control and slope protection settings.
| Mesh Size | Wire Ø (mm) | Selvedge Wire Ø (mm) | Lacing Wire Ø (mm) | Coating Options |
|---|---|---|---|---|
| 60×80 mm | 2.0 | 2.4 | 2.2 | Zinc, Zn-5%Al, PVC |
| 80×100 mm | 2.7 | 3.4 | 2.2 | Zinc, Zn-5%Al, PVC |
BS EN 10223-8 (Welded Mattresses)
Applicable to this standard, BS EN 10223-8 indicates the criteria used in producing welded mesh gabions with attention paid to the wire tensile strength, coating conditions and weld stability. It specifies requirements that the welded mattresses should maintain adequate load-bearing capabilities and be corrosion resistant. This standard is relied on by large numbers of infrastructure and hydraulic engineering projects.
| Mesh Size | Wire Ø (mm) | Weld Strength | Coating Options |
|---|---|---|---|
| 50×50 mm | 3.0 | ≥75% of tensile strength | Zinc, Zn-5%Al, PVC, Stainless Steel |
| 75×75 mm | 2.7 | ≥75% of tensile strength | Zinc, Zn-5%Al, PVC, Stainless Steel |
Discover Our Range of Gabion Mattresses

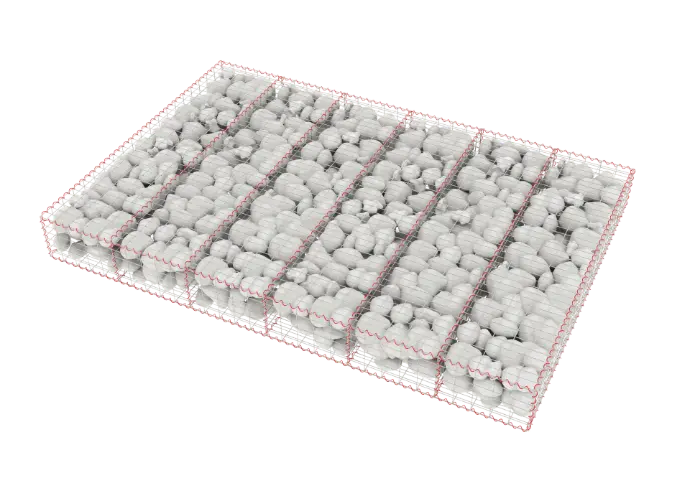

Gabion Mattress Sizes and Dimensions
Available Mattress Sizes
| Length (m) | Width (m) | Thickness (m) | Cells | Standard Reference |
|---|---|---|---|---|
| 2.00 | 2.00 | 0.225 - 0.50 | 4 | BS EN 10223-8. |
| 3.00 | 2.00 | 0.225 - 0.50 | 6 | BS EN 10223-8. |
| 4.00 | 2.00 | 0.225 - 0.50 | 8 | BS EN 10223-8. |
| 5.00 | 2.00 | 0.225 - 0.50 | 10 | BS EN 10223-8. |
| 6.00 | 2.00 | 0.225 - 0.50 | 12 | BS EN 10223-8. |
| 9.00 | 1.83 | 0.15 - 0.30 | 3 | ASTM A974. |
| 12.00 | 1.83 | 0.15 - 0.30 | 4 | ASTM A974. |
Coating Options
| Coating Type | Specification | Protection Level | Application |
|---|---|---|---|
| Galvanized | ASTM A641, EN 10244-2 | Moderate | General soil & freshwater applications |
| Zn-5% Al (Galfan) | ASTM A856, EN 10244-2 | High | Coastal, polluted, and marine environments |
| PVC Coated | ASTM A974, A975 | Very High | Saltwater, aggressive soils, long-term use |
| Aluminum Coated | ASTM A809 | Very High | High-chloride, acidic conditions |
| Stainless Steel | EN 10223-8 (Optional) | Extreme | Special applications, architectural uses |

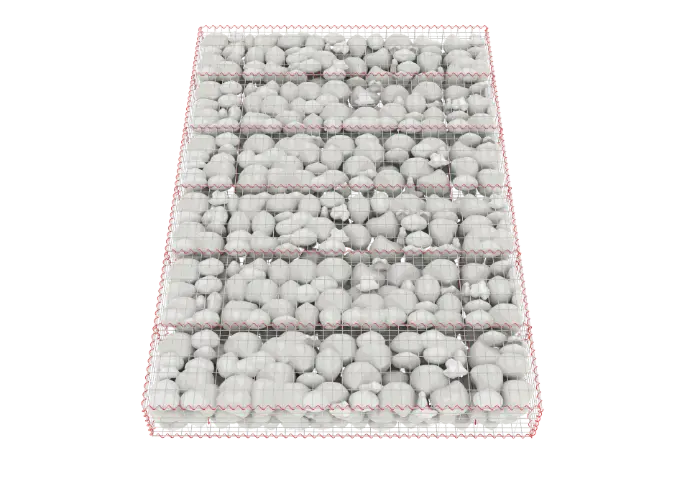

Applications of Gabion Mattresses
Erosion Control
Channel Lining
Slope Protection
Riverbank Stabilization
Contact Us for Gabion Mattress Orders
Ready to enhance your project with high-quality gabion mattresses? Contact Hi-Tech Gabion today to discuss your needs and place your order. Our team is here to assist you with any questions and provide expert guidance to ensure the best solution for your project.
