Geotextile Solutions for Effective Construction and Erosion Control
Geotextile Gabion
Geotextiles are man-made permeable materials that are common in civil engineering and road infrastructure to enhance service life, durability and structural performance. Geotextiles are intended to serve various purposes in a soil-structure system, and are typically used in railway formations and road construction, embankments and in the retaining structure, and foundation works.

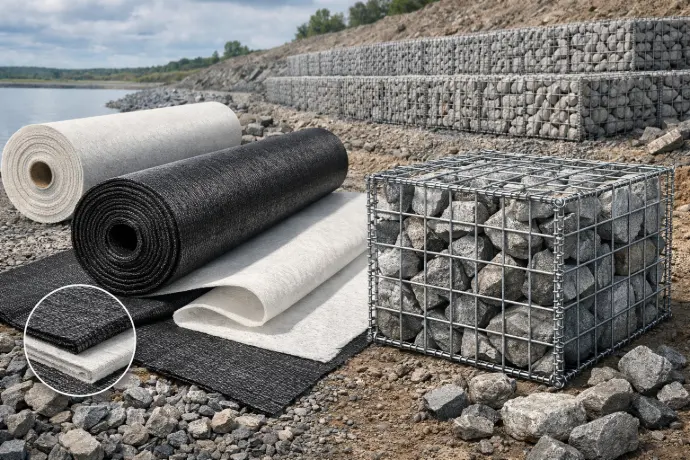

Why Choose Geotextile Gabion from Hitech Gabion?
Rigid structure and high strength
Galvanized or galfan steel wires.
Ideal for both construction engineering and architectural decorations.
Special discount for large orders
Project reference can be supplied for your bid.
ISO Certificated factory.
CAD or 3D drawing can be supplied for your design and construction.
The Role and Benefits of Geotextile in Construction and Landscaping
Geotextile Gabion Features
| Soil Stabilization | Use of geotextiles enables soil stabilization which improves road infrastructure foundation through ground support strengthening for road construction also used in landscaping. |
| Moisture Barrier | Geotextile layers are the barriers responsible for controlling movement of water ensuring the soil is not eroded and thus helps in subgrade failure prevention |
| Durability | Geotextiles protect underlying soils from different weather conditions hence they extend the project site's operational lifetime. |
| Customizable Options | The available fill materials come in multiple dimensions and forms to satisfy different architectural requirements. |
Reinforce your project with high-quality Geotextile Gabions
Material and Specifications
Geotextiles are made of tough polymeric fibers that are designed to resist mechanical forces, wear and tear, environmental factors, and chemical reaction with the soil. These key performance parameters include tensile strength, elongation, permeability, apparent opening size, and resistance to degradation; these are the most important parameters on which they are selected. The standard produced products are usually made according to the accepted international standards like ASTM and EN standards to maintain the same quality and performance.
| Property | Specification |
|---|---|
| Product Form | Supplied in rolls |
| Maximum Roll Width | Up to 6.0 m |
| Maximum Roll Length | Up to 200 m |
| Mass per Unit Area | 140 g/m² to 2000 g/m² |
| Thickness (under pressure) | ≥ 1.1 mm to > 10 mm |
| UV Resistance | ≥ 70% retained strength after 500 hours |
| Compliance | Applicable ASTM / EN standards |
Dimensions
Geotextile Gabion Features
| Feature | Description |
|---|---|
| Materials | Geotextile bags use polypropylene or polyester materials and gabion mesh contains steel wire either coated with PVC or galfan material. |
| Installation Method | Geotextile bags receive in-situ materials and sand as well as stone filler and soil then placed into gabions. |
| Packing | Geotextile bags undergo a folding process that includes rope attachment. Wooden frames or pallets contain gabion mesh sheets or rolls. |
Geotextile bags use polypropylene or polyester materials and gabion mesh contains steel wire either coated with PVC or galfan material.
Geotextile bags receive in-situ materials and sand as well as stone filler and soil then placed into gabions.
Geotextile bags undergo a folding process that includes rope attachment. Wooden frames or pallets contain gabion mesh sheets or rolls.
Reliable Geotextile Systems for Modern Infrastructure Projects

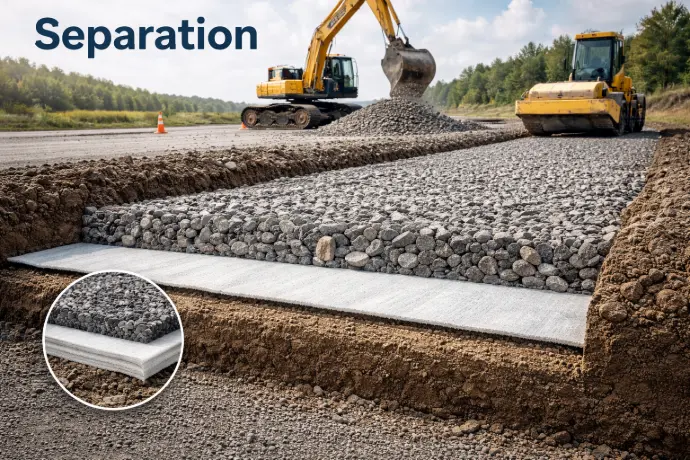

Separation
Geotextile placed between subgrade soils and the layers of granulations will ensure that the fine soil particles are not mixed with the ballast or base materials. This supports the set design thickness, gradation, and mechanical characteristics of every structural layer in a cyclic and dynamic load

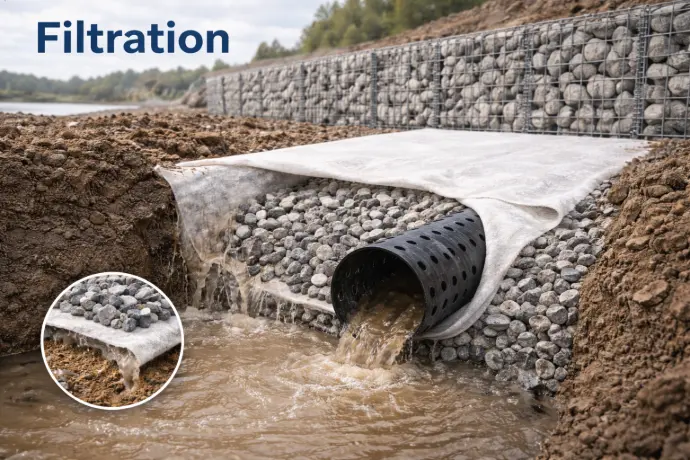

Filtration
The pore structures are engineered to control the water flow and retain the soil particles. This will stop clogging, reduce movement of fines and ensure drainage efficiency reduces subgrade weakening and pumping.
Drainage
Geotextiles promote high water flow in the soil system, which lowers the pressure of water in the pores of soil and eliminates water stagnation as well as minimizes deformation due to saturation of subgrades.
Reinforcement
Geotextiles enhance bearing capacity by decreasing stress concentrations, redistribution of applied loads throughout a broader zone, and enhancing resistance to differential settlement with heavy and cyclic loads
Reasons to Choose Our Geotextile Products
Why Choose Our Geotextile Products?
Our geotextile products are designed to work in the harsh site environment in Saudi Arabia and provide stability in the long run, efficient drainage management, and structural integrity of civil and road projects. Our products have a high standard of quality and performance as supplied by Hitech Gabion, a reputable and topmost supplier in the Kingdom. We also do compliant, consistent material provision with technical support so that the correct selection and application can be made.
Downloads
Frequently Asked Questions About Geotextiles
Explore the fundamentals of geotextiles, how they work, and how they can be integrated into your next project for enhanced efficiency and sustainability.
Gain insights into the best practices for implementing geotextiles in various settings and how to maximize their benefits for your specific needs.
Get Started with the Best Geotextile Products Today
Contact us now to discuss your needs with our experts and find out how our geotextile products can add value to your next project. Explore our diverse range and get the right solution tailored to your specifications.
