Ellipse Raised Bed

Short Brief

Add a touch of elegance and functionality to your outdoor space with our rectangular gabion raised garden bed planter. This versatile planter is perfect for growing a variety of plants, including flowers, vegetables, herbs, and shrubs. It can also be used to create a unique and eye-catching focal point in your garden or patio..

Get Quote​​​​


Description

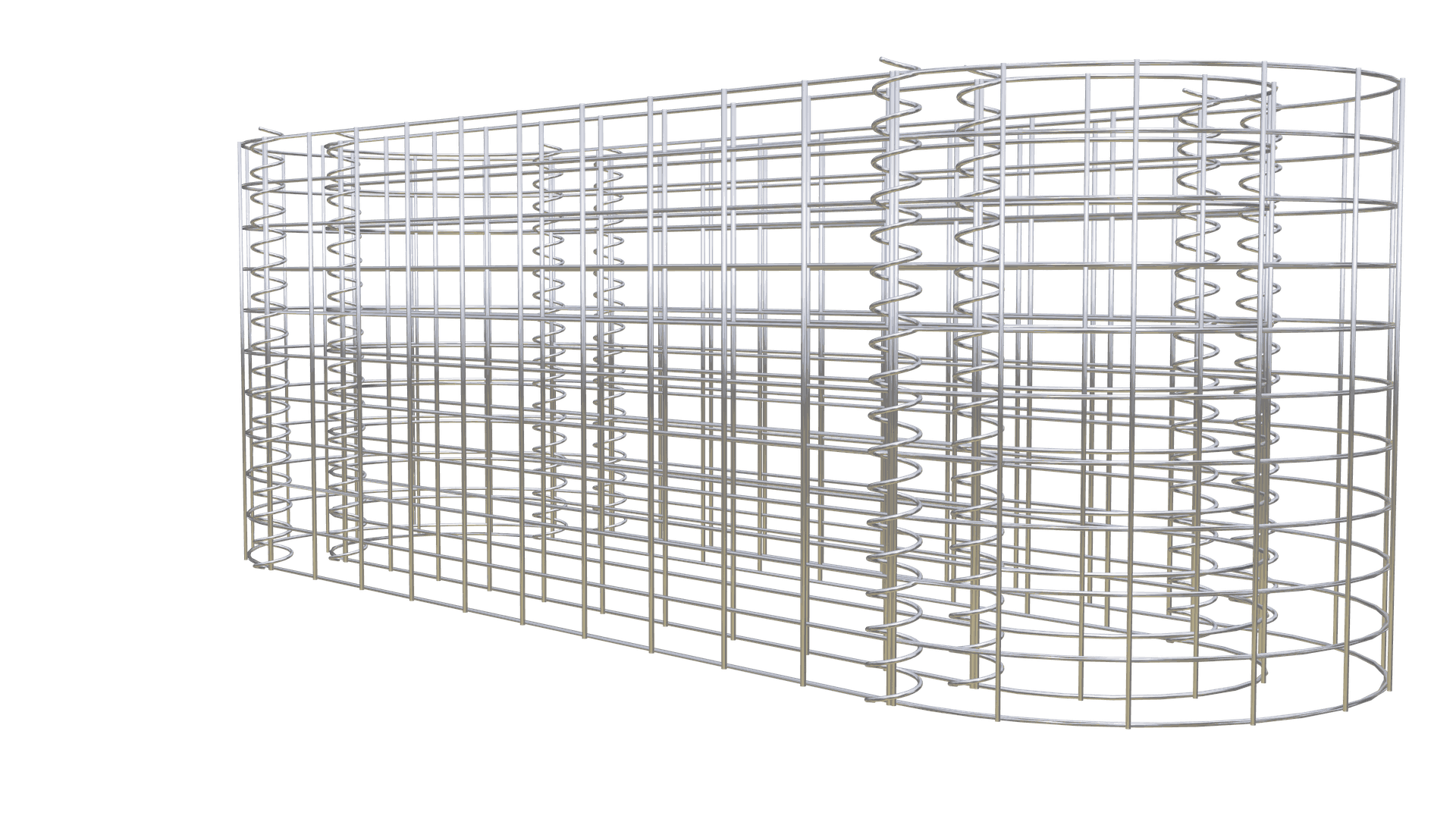

The rectangular gabion raised garden bed planter is made of high-quality galvanized steel wire mesh, which is rust-resistant and weatherproof. This ensures that your planter will last for many years to come, even in the harshest weather conditions.

The rectangular gabion raised garden bed planter is also very sturdy and durable, thanks to its sturdy construction and transverse and longitudinal wires welded at every intersection. This means that it can support a variety of plants and soil, without the risk of collapsing or warping.

In addition to its durability and functionality, the rectangular gabion raised garden bed planter is also incredibly easy to assemble and maintain. Simply fill it with rocks, gravel, or other decorative materials to create a secure and stylish border for your garden bed.

Features

  • Multiple variants are available
  • Wire diameter of 4 mm
  • Mesh size 100x50mm
  • Rust and corrosion resistant
  • Better Life
  • Galvanized
  • Custom finish coating available
  • Multiple colors are available
  • Stylish design
  • 100% Tested
  • 100% strong

Application

  • Parks
  • School
  • Hotels
  • Public Building
  • Offices
  • Outdoor spaces
  • Residential
  • Demarcation
  • Sports Center

Technical Specifications

Material Carbon steel wire
Wire Diameter 4.00mm
Wall Thickness 100mm
Mesh Size 100x50 mm

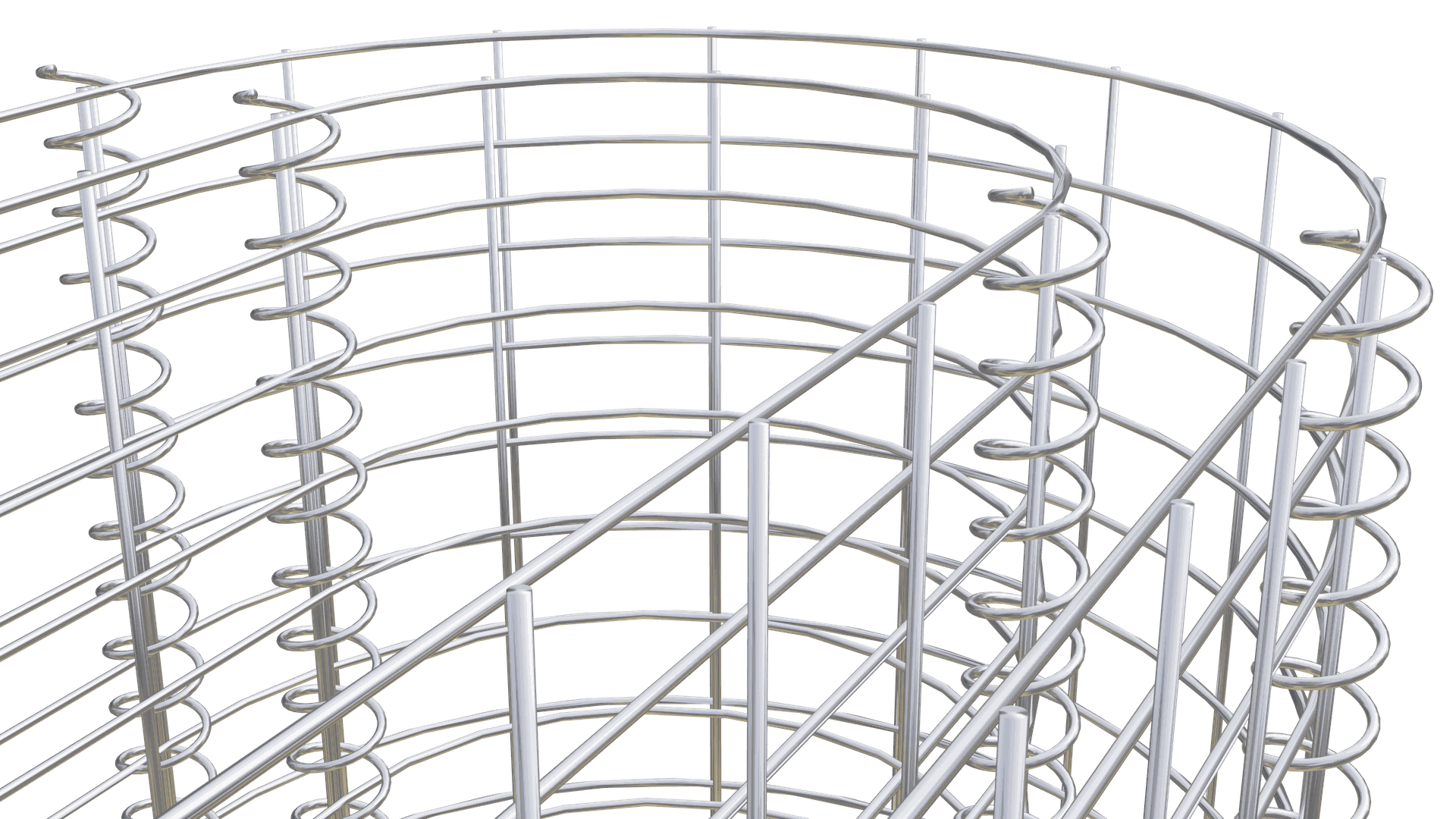

Spiral coil wire diameter 3mm
Spiral coil inner diameter 20 mm
Spiral Pitch 45mm
Load Capacity 1400 kg/m3
Assembly Required Yes
Rust proof Yes
Finishing Galvanized/PVC coating
Color Silver

Variants Description

Article Number Outer Dimensions Inner Dimensions Wall Distance
GR1210
  1500x500x500
1200x300x500
100 mm
GR1220
4000x500x500
3800x300x500
100 mm
GR1230
2000x1000x500
1800x800x500
100 mm
GR1240
3000x1000x1000
2800x800x1000
100 mm
GR1250
4000x1000x1000
3800x800x1000
100 mm
GR1260
6000x1000x1000
5800x800x1000
100 mm

Finishes

  • Products are hot deep Galvanized to BSEN1461 or Equivalent standards.
  • Galvanized and Powder coated to BSEN13438 or Equivalent standards.
  • Only powder coating to non-standard
  • Marine coat Coating for application near salt water

STANDARD COLOURS

  • Galvanized
  • PVC Ral black 9005
  • Custom colors and coating are available

Installation

At Hitech Gabion, we provide premium gabion products tailored to your needs and offer comprehensive support for your project's success. While we don't directly offer installation services, our expert team is available to provide detailed instruction manuals and consultancy to guide you through the installation process. If you require additional installation support, we can connect you with trusted construction vendors. Your satisfaction and project success are our top priorities, and we're committed to helping you achieve outstanding results every step of the way.
