A gabion box is a wire mesh container filled with durable stone and used to create retaining, erosion-control, slope-protection, and other civil engineering structures. Gabion boxes are widely used because they combine a strong stone mass with a flexible wire mesh system that can adapt to certain ground movements while allowing water to pass through the structure.
For projects in Saudi Arabia, selecting the right gabion box requires more than choosing a convenient basket size. The mesh opening, wire diameter, protective coating, dimensions, connections, stone grading, foundation, drainage, and intended application should all be considered together.
Gabion boxes can be used for retaining walls, road infrastructure, wadi protection, erosion control, slope stabilization, drainage works, landscaping, and other applications where a stone-filled wire structure is appropriate. This guide explains what gabion boxes are, how they are configured, where they are used, and what contractors, engineers, consultants, and procurement teams should check before selecting them.
What Is a Gabion Box?

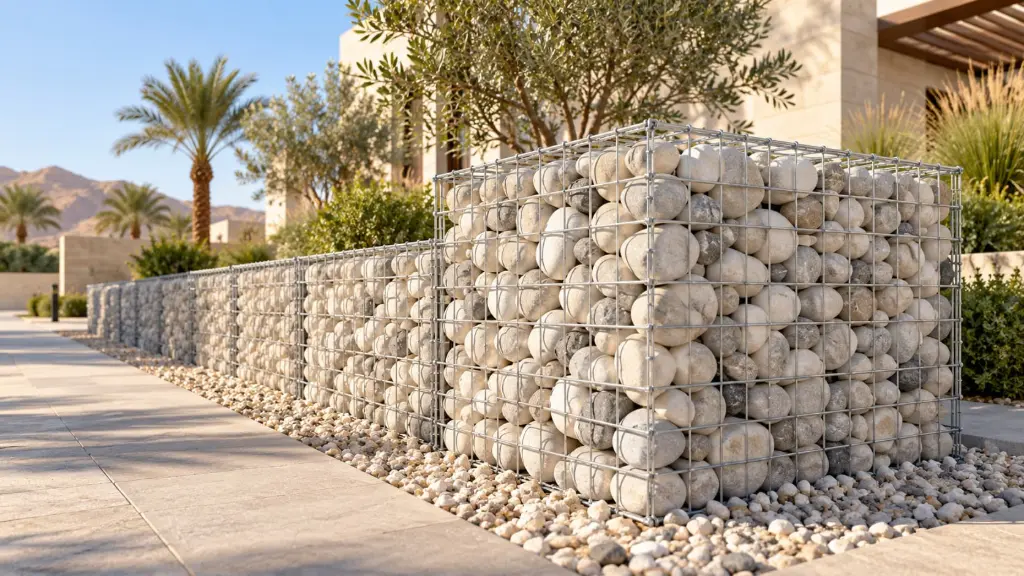

A gabion box is a three-dimensional wire mesh unit assembled into a box or basket and filled with stone. Once filled and connected to adjacent units, individual gabion boxes can form larger structures. These structures can include:
- Retaining walls
- Slope protection systems
- Erosion-control structures
- Wadi protection
- Drainage-channel protection
- Roadside protection
- Landscaping walls
- Infrastructure protection
The wire mesh contains the stone while the stone provides the majority of the mass of the completed structure.
How Does a Gabion Box Work?
A gabion box works as part of a complete system rather than as an independent component. The basic arrangement is:
Wire mesh → connections → stone fill → connected gabion structure
The mesh holds the stone together. The connections join individual units and courses. The stone creates the mass required for the intended application. The surrounding foundation, backfill, drainage, and ground conditions also influence the performance of the finished structure. For this reason, selecting a gabion box should always begin with the application and project requirements.
Main Components of a Gabion Box
A typical gabion box can contain several components.
Wire Mesh
The mesh forms the main containment structure. Its specification can include:
- Mesh opening
- Wire diameter
- Mesh configuration
- Coating
Edge or Selvedge Wire
The perimeter can use reinforced edge wire to strengthen the panel and provide a suitable connection area.
Diaphragms
Longer gabion boxes may contain internal diaphragms that divide the unit into compartments and help maintain its shape.
Lacing Wire
Lacing wire can be used to assemble panels, connect units, and close the lid.
Mechanical Connectors
Depending on the product system, clips, spirals, rings, or other connectors may be used.
Stone Fill
The basket is filled with suitable durable stone that matches the mesh opening and project requirements.
Gabion Box Sizes
Gabion boxes are manufactured in different lengths, widths, and heights. The required size depends on:
- Wall configuration
- Application
- Available space
- Required wall height
- Installation method
- Project drawings
- Stone availability
There is no single gabion box size that is suitable for every project. The selected dimensions should be taken from the approved product specification and coordinated with the engineering drawings.
Gabion Box Dimensions vs Wall Dimensions
A common procurement mistake is confusing the size of an individual gabion box with the dimensions of the completed wall. For example, a retaining wall can contain multiple courses of gabion boxes. The completed wall may have:
- A wider base
- A narrower upper section
- A stepped profile
- A batter
- Different unit sizes
- Different course arrangements
Therefore, the overall wall dimensions need to be established before selecting the exact combination of gabion boxes.
Common Gabion Box Configurations
Gabion boxes can be arranged in several ways depending on the project.
Single-Course Arrangement
A single course can be used for low walls, landscaping, or certain protection applications where the design permits.
Multi-Course Wall
Multiple courses can be stacked and connected to create a taller structure.
Stepped Wall
Each course can be positioned with a setback to create a stepped profile.
Battered Wall
Courses can be arranged to create an inclined wall face.
Terraced Arrangement
Several lower gabion structures can create a series of terraces where appropriate.
The final configuration should follow the approved design.
Gabion Box for Retaining Walls
Retaining walls are one of the most common applications for gabion boxes. A gabion retaining wall uses the mass of the stone-filled units to resist the forces generated by retained soil. The design should consider:
- Wall height
- Soil properties
- Surcharge
- Foundation conditions
- Groundwater
- Drainage
- Wall geometry
- Backfill
- Available space
The gabion box is only one component of the complete retaining-wall system.
Gabion Box for Slope Protection
Gabion boxes can be used in slope-protection projects where a three-dimensional stone-filled structure is appropriate. Applications may include:
- Slope toe protection
- Embankment protection
- Erosion control
- Retaining unstable ground
- Roadside slope protection
The overall slope should be assessed rather than treating the gabion box as a standalone solution. Depending on the slope condition, the project may also require drainage, geotextile, anchors, or other stabilization measures.
Gabion Box for Erosion Control
Gabion structures can help protect soil from erosion by providing a durable stone surface and retaining material in vulnerable areas. Applications can include:
- Riverbanks
- Wadi edges
- Drainage channels
- Culvert outlets
- Embankments
- Sloped ground
The correct system depends on the type and intensity of erosion. For surface and hydraulic protection, a Reno mattress may be more suitable than a conventional gabion box in some applications.
Gabion Box for Wadi Protection
Wadi protection projects require careful consideration of water movement. During intense rainfall, rapid runoff can cause:
- Bank erosion
- Channel scour
- Soil loss
- Undermining
- Damage around drainage structures
Gabion systems can be incorporated into suitable hydraulic protection designs. The design should consider:
- Expected water flow
- Channel geometry
- Foundation
- Stone size
- Mesh specification
- Erosion conditions
- Upstream and downstream effects
A standard gabion box arrangement should not be used automatically in locations exposed to significant hydraulic forces.
Gabion Box for Road and Highway Projects
Gabion boxes can support road infrastructure applications such as:
- Retaining road embankments
- Protecting cut slopes
- Drainage-channel protection
- Bridge approach protection
- Roadside erosion control
- Slope stabilization
Road projects can involve additional loading from traffic and infrastructure. The gabion wall should therefore be designed with the road geometry, traffic loads, drainage, and foundation conditions in mind.
Gabion Box for Landscaping
Gabion boxes are also used in landscaping because natural stone can create a strong architectural appearance. Applications include:
- Garden retaining walls
- Boundary walls
- Raised planting areas
- Terraced gardens
- Decorative features
- Outdoor seating structures
For a landscaping project, stone selection can have a major effect on the finished appearance. If the gabion box retains soil, however, the structure still needs suitable foundation and drainage consideration.
Gabion Box for Drainage Applications
Gabion structures can be incorporated into drainage and channel-protection works. Potential applications include:
- Channel lining
- Outlet protection
- Bank stabilization
- Culvert protection
- Scour protection
The suitability of the gabion system depends on the hydraulic conditions. Where water velocity or flow depth is significant, the design should be supported by appropriate hydraulic assessment.
Gabion Box Mesh Specifications
The mesh is one of the most important components of the product. The technical specification may include:
- Mesh opening
- Wire diameter
- Mesh type
- Edge wire
- Coating
- Connection system
- Diaphragm arrangement
The selected mesh should be compatible with the intended stone size. For more detailed technical information, the project's gabion basket specification should be reviewed alongside the product documentation.
Gabion Box Wire Coating
Wire coating provides protection against corrosion. The required coating depends on:
- Environmental exposure
- Moisture
- Salinity
- Project requirements
- Expected service conditions
For coastal locations, the wire-protection specification deserves particular attention. Projects around Jeddah, Yanbu, Dammam, and Jubail may have different exposure conditions from inland projects. The coating should therefore be selected according to the actual project environment rather than using one specification for every location.
Gabion Box Stone Requirements
Stone is the main filling material inside the gabion box. The stone should be:
- Durable
- Suitable for the project environment
- Appropriately sized
- Compatible with the mesh opening
- Resistant to weathering
- Suitable for the intended application
The final stone specification should be established by the project documentation. For visible landscaping walls, the color, shape, and appearance of the stone may also be important.
Gabion Box and Stone Size Compatibility
Stone grading should be checked before installation. If the stone contains pieces that are too small for the selected mesh opening, material can escape through the mesh. If the stones are too large, the contractor may have difficulty filling the basket evenly. The contractor should therefore confirm:
Mesh opening + stone grading + basket dimensions
before filling begins.
Gabion Box Connection System
Adjacent gabion boxes must be properly connected. The connection system may include:
- Lacing wire
- Clips
- Spirals
- Rings
- Other approved connectors
The selected connection method should be compatible with the gabion product. The project specification should also identify the required connection system where applicable.
Gabion Box Diaphragms
Long gabion boxes can contain internal diaphragms. These divide the basket into sections and help maintain its geometry during filling. Diaphragms can also help reduce deformation of longer units during construction. Their spacing should be confirmed from the product specification.
Gabion Box Foundation Requirements
The foundation is an important part of a gabion retaining structure. Depending on the project, foundation preparation can involve:
- Excavation
- Removal of unsuitable soil
- Subgrade preparation
- Compaction
- Leveling
- Foundation material
The exact arrangement depends on site conditions. For retaining walls and major infrastructure, the foundation should be based on the approved engineering design and geotechnical information.
Gabion Box Drainage and Geotextile
Water management should be considered when gabion boxes retain soil. A project may require geotextile behind the structure to separate soil from the gabion and help prevent migration of fine particles. Drainage may also include:
- Drainage layers
- Toe drains
- Surface channels
- Outlets
- Culverts
The correct arrangement depends on the site. Gabion boxes are permeable, but permeability does not remove the need to properly manage surface and subsurface water.
Gabion Box Quality Inspection
Before installation, inspect the supplied products for:
- Correct dimensions
- Mesh condition
- Wire coating
- Edge wire
- Diaphragms
- Connections
- Quantity
- Packaging condition
The stone should also be checked for:
- Size
- Durability
- Cleanliness
- Compatibility with mesh
Formal inspection should follow the project's approved quality-control procedure.
Gabion Box Quantity Calculation
For preliminary estimation, the number of boxes depends on:
- Wall length
- Wall height
- Number of courses
- Unit dimensions
- Wall profile
For example, a simple straight section can be divided into the length covered by each unit. However, final quantities should account for:
- Corners
- Curves
- Changes in height
- Different courses
- Setbacks
- Openings
- Site conditions
For procurement, the approved gabion schedule should be used instead of a basic theoretical calculation.
Gabion Box Installation
Installation normally involves:
- Preparing the foundation
- Unfolding the gabion box
- Assembling the panels
- Positioning the first course
- Connecting adjacent units
- Installing diaphragms where required
- Filling with approved stone
- Installing internal bracing where required
- Closing and securing the lids
- Installing additional courses
- Placing backfill
- Completing drainage and surrounding works
The actual sequence should follow the approved construction method statement.
Gabion Box vs Gabion Mattress
Gabion boxes and Reno mattresses serve different purposes. A gabion box is deeper and commonly used for retaining structures, gravity walls, and three-dimensional protection works. A Reno mattress is relatively shallow and can be used for surface erosion and hydraulic protection.
The choice depends on the engineering problem. Using the correct product for the actual application can improve both construction efficiency and system performance.
Why Choose Hitech Gabion?
Hitech Gabion provides gabion and earth-retention solutions for construction and infrastructure projects in Saudi Arabia. Its solutions support applications including:
- Gabion boxes
- Gabion baskets
- Gabion mesh
- Retaining walls
- Slope protection
- Erosion control
- Wadi protection
- Reno mattresses
- Drainage protection
- Landscaping
- Infrastructure projects
Hitech Gabion can support contractors, consultants, procurement teams, and project stakeholders looking for gabion systems for Saudi construction applications. For every project, the final product selection should be coordinated with the approved drawings, engineering requirements, environmental conditions, and project specifications.
Conclusion
Gabion boxes provide a flexible way to build stone-filled retaining and protection structures, but the correct product must be selected according to the application. The box dimensions, mesh opening, wire diameter, coating, diaphragms, connections, stone, foundation, drainage, and wall configuration all need to work together.
For Saudi Arabia projects, the selection should also account for regional environmental conditions, terrain, soil, water movement, and project specifications. Whether the project is a retaining wall in Riyadh, slope protection in Taif, coastal infrastructure in Jeddah or Dammam, or wadi protection elsewhere in the Kingdom, the gabion box should be selected as part of the complete engineering solution.
Hitech Gabion provides gabion boxes and related earth-retention solutions for Saudi construction and infrastructure applications, supporting project teams with products for retaining, erosion-control, slope-protection, and related works.
Frequently Asked Questions
A gabion box is a wire mesh container filled with suitable stone. Multiple boxes can be connected to form retaining walls, erosion-control structures, and other civil engineering systems.
Gabion boxes can be used for retaining walls, slope protection, erosion control, wadi protection, road infrastructure, drainage protection, and landscaping.
Gabion boxes are manufactured in different lengths, widths, and heights. The suitable size depends on the product system and project requirements.
Durable stone of an appropriate size is used. The stone grading should be compatible with the mesh opening and project specification.
Foundation requirements depend on the site and design. A stable and properly prepared base is essential for retaining-wall applications.
Geotextile may be required behind a gabion retaining wall to provide soil separation and filtration. Its use depends on the project conditions and design.
Gabion boxes can be used for many Saudi applications, including retaining walls, slope protection, erosion control, wadi protection, road infrastructure, and landscaping, subject to suitable engineering design.
They can be used in coastal environments when the wire coating and complete product specification are selected for the expected environmental exposure.
The terms can vary between manufacturers. Both generally describe stone-filled wire mesh units. For procurement, the exact dimensions and technical specifications should be confirmed.
Gabion boxes can form multi-course retaining walls, but the required configuration and height must be established through project-specific engineering assessment.
