In Saudi Arabia, Gabion basket retaining walls have gained popularity as a good method of controlling erosion, slope stability, and also landscape appearance. The structures consist of wire mesh cages filled with stones and help to provide strength, flexibility, and long durability. The cost of the gabion basket retaining wall is quite critical to developers, homeowners, engineers, and construction companies intending to design infrastructure or residential developments.
Gabion walls are also environmentally friendly. In contrast to the old concrete retaining walls, the gabions do not block the free flow of water, decrease the pressure of the soil, and do not crack in accordance with soil movements. Their modular construction and capability of being combined with the landscaping make them very flexible in contemporary Saudi villa constructions, highways, and flood prevention systems.
What Is a Gabion Basket Retaining Wall?

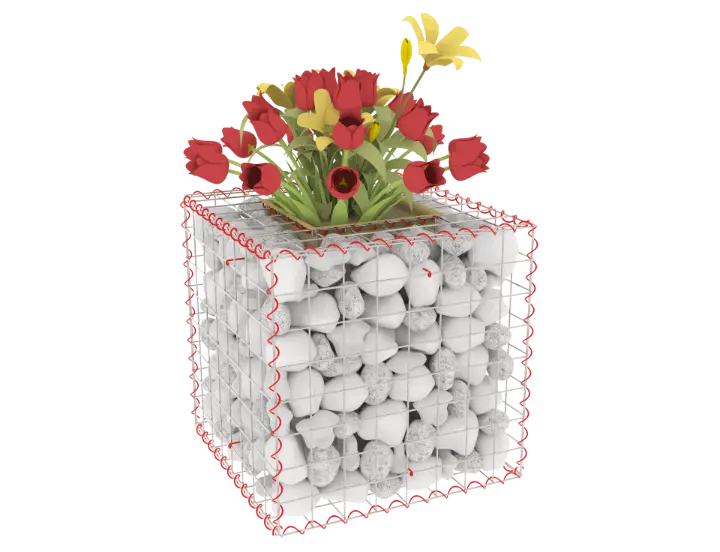

An alternative structure, A gabion retaining wall is a rectangular or square open wire mesh basket (commonly galvanized steel, PVC-coated steel, or stainless steel) filled with stones or rocks. The baskets can either be stacked or staggered to construct vertical or sloping walls, which integrate stability and natural beauty.
Gabion walls have wide application in
- Courts and gardens, to serve as walls to hold back, ornamental landscaping, and planters.
- Infrastructure projects- highways, bridges, and slopes.
- Flood and erosion control - on the banks of the rivers, wadis, and the coasts.
Key Factors Affecting Gabion Retaining Wall Cost
The cost of a gabion basket retaining wall in Saudi Arabia varies based on several technical and logistical factors that influence material choice, design, and installation.
| Factor | Effect on Cost | Notes |
|---|---|---|
| Wire Mesh Material | PVC-coated or stainless steel is more expensive | Provides longer lifespan and corrosion resistance |
| Stone Type | Granite or basalt is higher priced than limestone or sandstone | Denser stones ensure stability and durability |
| Wall Dimensions | Taller or longer walls increase material and labor costs | Larger walls require more baskets and stones |
| Stone Size | Larger stones reduce settling but may raise costs | Recommended size: 100–200 mm for standard baskets |
| Installation Complexity | Uneven terrain or steep slopes increase labor costs | Professional installation ensures stability |
| Transportation | Stones from distant quarries increase delivery cost | Using local stones is economical |
| Optional Features | Decorative finishes, lighting, and integrated planters | Enhances aesthetic value but raises total cost |
Gabion Retaining Wall Estimated Cost in Saudi Arabia.
- Normal Walls: Galvanized netting with local limestone or sandstone – SAR 350500 per m 3.
- Premium Walls: PVC-coated granite or basalt mesh - SAR 8001500/m 3.
- Decorative Walls: Multi-colored stones, LED, or built-in landscaping elements - the prices depend on the design.
Prices are different based on suppliers, availability of the stone, and the location of the project. Bulk projects may sometimes also cut per-cubic-meter cost.
The benefits of Gabion Basket Retaining Walls.
- Durability- Gabion walls have the capacity to stay up to 50100 years when built using quality materials.
- Green - They enable plants to grow and promote natural drainage that prevents soil erosion and biodiversity.
- Flexibility- Gabion walls are flexible and able to follow the movement of the soil as opposed to concrete structures, which may crack or collapse.
- Affordable - Gabions are affordable due to the low cost of stones and the low cost of maintenance.
- Aesthetic Appeal - Gabion walls can blend in with modern villa gardens, urban landscaping, or highway embankments.
- Low Maintenance- Gabion walls do not need much maintenance once installed, as they normally only need a check of the wire mesh periodically.
Installation Considerations
Gabion retaining walls have to be well installed in order to achieve a long-term performance:
- Preparation: Foundation Level and compacted ground is very essential to eliminate wall settling.
- Basket Assembly: Assemble wire mesh baskets and make sure that they are aligned and stable.
- Stone Filling: Fill baskets evenly with the recommended sizes of stones to eliminate any gaps.
- Stacking: Stagger baskets so that they carry the best load particularly on taller walls.
- Reinforcement: When dealing with steep slopes or flood prone, then include geotextile or anchors to give extra stability.
- Drainage Integration: Gabions are permeable by their nature, although drainage pipes can be included in locations where water flows are high.
Saudi Arabia Gabion Wall Performance.
Gabion walls are quite appropriate to the Saudi climate:
- Desert Areas: Galvanized or PVC-coated walls are resistant to abrasion caused by sand and also to high temperatures.
- Coastal Areas: Gabions are covered with Galfan or PVC and resistant to corrosion by saltwater.
- Flood-Prone Areas: Gabion permeability minimizes the hydrostatic pressure when there is a seasonal flow of water.
The materials used depend on the longevity of the life, which is maximum when using PVC-coated or stainless steel baskets with regard to extreme weather conditions.
Selection of the Right Gabion Wall.
When choosing a gabion retaining wall, consider the following:
- Type of Project: Residential villas, city landscaping, highway, flood control, or seashore defense.
- Budget: Galvanized mesh and local stone are less expensive, high-quality mesh, and granite/basalt is more durable.
- Design Requirement: Decorative gabion walls can be used with multi-colored stones or built-in planters.
- Structural Needs: Taller or load-carrying walls need a heavier mesh and big stones.
Conclusion
Gabion retaining walls of basket type are a durable, cost-efficient, and environmentally friendly method of controlling erosion, slope stabilization, and landscape in Saudi Arabia. The knowledge of the cost of building a gabion basket retaining wall can assist developers, homeowners, and contractors in making the right decisions when choosing the materials to be used, designing, and installing it.
Gabion walls are synonymous with power, durability, and beauty; hence, it is an excellent option in the development of infrastructure and scenery in Saudi Arabia.
